HARDINGE HLV-EMمخارط الدقة

بطاقة الهوية
440340
علامة تجارية
موديل
السنة
1987
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158059
الثمن

الوصف

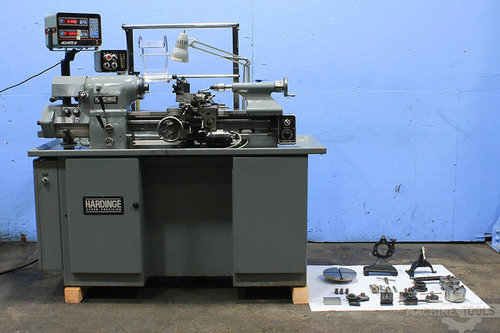

11" Swing 18" Centers Hardinge HLV-EM PRECISION ENGINE LATHE, Inch/Metric,Vari-Speed,Acu-Rite DRO,5C Collet,Tape

المواصفات

تحويل المواصفات للمتري
الأرجحة
11 "
المراكز
18 "

HARDINGE SUPER PRECISION TOOL ROOM LATHE

MODEL HLV-EM,  S/N: HLV-H-12832T,  NEW 1987



SPECIFICATIONS:

SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING

SPINDLE NOSE ......................... HARDINGE TAPERED

SPINDLE CAPACITY:

    WITH ROUND TYPE 5C COLLETS ....... 1-1/16"

WITH STEP CHUCKS ..................... 1-1/16" TO 6"

WITH JAW CHUCKS ...................... 5"

WITH EXPANDING COLLETS ............... 3"

VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.

HOLE THROUGH SPINDLE ................. 1-1/4"

SWING OVER BED ....................... 11"

SWING OVER CARRIAGE .................. 9"

SWING OVER CROSS SLIDE ............... 6"

DISTANCE BETWEEN CENTERS ............. 18"

COMPOUND SLIDE TRAVEL ................ 3"

CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.

CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"

TAILSTOCK SPINDLE TAPER .............. #2 MT

INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.

METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM

APPROXIMATE WEIGHT ................... 1,700 LBS.



EQUIPPED WITH:

- ACU-RITE TWO AXIS DIGITAL READOUT

- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING

- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK

- HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER

- TAPER TURNING ATTACHMENT

- ASSORTMENT OF 5C COLLETS

- 3-JAW CHUCK

- 4-JAW CHUCK

- STEADY REST

- FOLLOW REST

- ALORIS MODEL: AXA QUICK CHANGE TOOLPOST WITH HOLDERS

- JACOBS DRILL CHUCK FOR TAILSTOCK

- LIVE & DEAD CENTER FOR TAILSTOCK

- SELF-CONTAINED COOLANT SYSTEM

- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR

   WIRED FOR 208 VOLT



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE



CONDITION:  ***  SUPERB  ***





FOR MORE INFORMATION: Call David at 973-497-7570
