MAZAK MAZATECH FH-680مراكز المعالجة الأفقي

بطاقة الهوية
440884
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1996
الموقع
النمسا
رقم المخزن
AT-MIL-MAZ-1996-00001

الوصف

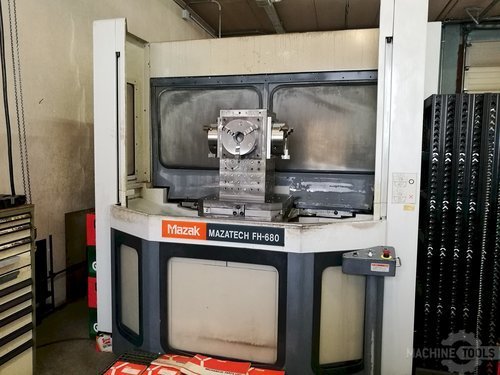

This Mazak Mazatech FH-680 Horizontal Machining Center was produced in 1996 in Japan and counts with approximately 45000 working hours. Operated through a Mazak Mazatrol M Plus Control unit, this machine comes with a pallet change system and real full 4 axes with simultaneous capability. Incorporating 15000 rpm, it is able to work with various materials, from steel to aluminum. It has 80 slots in storage as well. 50 Toolholders and other clamping devices are included in the price.

المواصفات

تحويل المواصفات للمتري
X
41.9 "
Y
31.5 "
Z
32.4 "
القدرة
40 hp
RPM
10000 rpm
# ATC
120
عرض اللوح
24.8 "
طول اللوح
24.8 "
انحناء
ISO-50

Mazak Mazatech FH-680 Horizontal Machining Center

Production Hours: 45000

General Data:
Measurements width: 6800 mm
Measurements depth: 3400 mm
Measurements height: 3300 mm
Machine weight: 21900 kg

Control Unit:
Brand: Mazak
Model: Mazatrol M Plus
CNC main language: German
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 15000 rpm

Movement:
X-Axis Movement: 1050 mm
Y-Axis Movement: 800 mm
Z-Axis Movement: 825 mm

Workpiece:
Workpiece drm: 1050 mm
Workpiece X: 1000 mm
Workpiece Y: 1000 mm
Workpiece Z: 1000 mm
Workpiece weight: 1500 kg

Table:
Outer length: 630 mm
Outer width: 630 mm

Tools:
Slots in storage: 80
Max weight: 30 kg
Max tool diameter: 135 mm
Max tool length: 500 mm
Type of tool holder: SK50

Media:
Main electronic connection: 3x220 V
Power consumption: 74.6 /63.6 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* 50 x toolholders
* Clamping Devices
