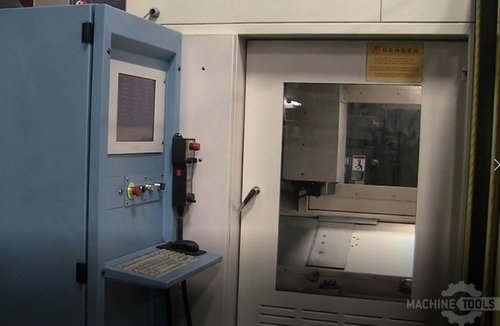

RODERS RFM 600/2مراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
440997
علامة تجارية
موديل
السنة
2001
الموقع
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
2519

الوصف

In the Roeders line of machines, accuracy, extreme dynamics and high machining speeds are combined with other important aspects such as outstanding chip removal, high flexibility, good ergonomics and the addition of automation. Features: * Patented sealing of all machine elements, therefore also ideally suitable for machining of graphite and other dust-creating abrasive materials without retooling, additional extraction equipment and other forms of restrictions. * Temperature stabilization of the complete machine frame for highly accurate production, water-cooling of bearings and spindle nuts as well as the milling spindle by means of an extra cooling sleeve. * Accessibility of the work area is particularly easy from 2 sides and visibility is excellent * Part loading with crane possible, front door opens roof * Tool changer - dust protected and with integrated laser measuring equipment * Laser measuring equipment for length and diameter measuring as well as checking and profile determination of the milling tool in use. * Digital drives with Sercos interface * 2 encoder systems, with high resolution in each axis for greatest accuracy and dynamic response. * Control technology, matched to the mechanical system of the machine, for movement completely free of contour variations * Operational accuracy, depending on use, with the accuracy being restricted by the machining process and not the machine itself.

المواصفات

تحويل المواصفات للمتري
X
23.6 "
Y
17.7 "
Z
11.8 "
أكسات
5
RPM
42000 rpm
# ATC
18
انحناء
HSK-E40
الأبعاد
149" LR x 67" FB x 103" H
الوزن
11,440 Lbs
CNC تحكم
CNC (Roders RMS6 CNC Control)

* Roeders RMS6 Control
* FISCHER HSK-E40 Spindle
* 42,000 RPM
* 18 Position ATC
* Blum Laser Tool Setter
* LMC Model MDHW 100L-17 Rotary Indexer w/System 3R Combi Chuck
* M&H Wireless Part Probe
* Prep for Dust Extraction
* Tower Dust Collector
* Auto Door and 3R Robot Interface
* Spindle Chiller
* Available Manuals and Accessories

** 3R Robot, Fencing, 3R Combi Table Chuck and toolholders pictured are NOT included with the machine purchase
