خطوط تغذيه البكرIOWA PRECISION SLR 6012-3
Illinois, الولايات المتحدة الامريكيةنظرة عامة
علامة تجارية
موديل
بطاقة الهوية
441055
النوع
رقم المسلسل
68206
الموقع
Illinois
الولايات المتحدة الامريكية
الولايات المتحدة الامريكية
رقم المخزن
103139
60" x 0.105" x 20,000 LB Iowa Precision Slear Line
Model Number: SLR 6012-3
Capacity: 60" x 0.105" (Mild Steel)
Slitting Capacity: 5 cuts of 0.105"
8 cuts of 0.075"
10 cuts of 0.060"
Consisting of:
Entry Coil Car:
Model CC20M
S/N: CC8206
20,000# Capacity
Hydraulic Cylinder Lift
Hydraulic Motor Driven Wheels
Supports included for small O.D. Coils

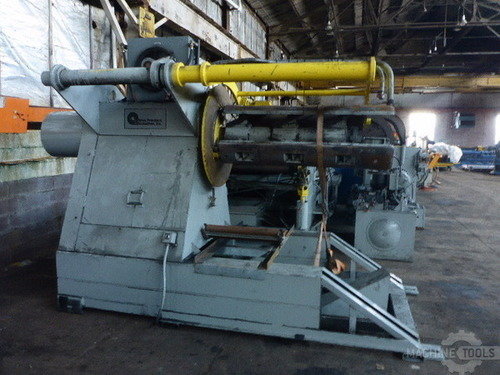

Uncoiler:
Model UCR20M60
20,000# Capacity
Expansion Range 19" - 23"
Hydraulic Expansion
Powered Holddown Roll
Threading Drive
Peeler Table:
HRRLR-60
Hydraulic Cylinder Actuated
PVC Applicator:
Slear Unit:
Model SLR 6012-3
Entry Pinch Rolls
Slitter Head
6 Roll Straightener
Flying Shear; Rebuilt 2018
Hydraulic Cylinder Operated
-Scrap Winder:
Oscillate Wind
Powered Arbor Retraction for dumping Scrap Ball
-Lift Table/Runout Conveyor:
Model LT10M510
10,000# Capacity
End Discharge
Roller Conveyor Top
20' Length
Side by side rolls 26-1/2" & 26-1/2".
Overall Width with separation bar, 56-1/2"
Scissors Lift type vertical adjustment
Hydraulic Power Unit:
Pendant Control with Flexcel Touchscreen Shear Control System
Allen Bradley Ultra3000 Controls: New in 2013
تحويل المواصفات للمتري
أقصى سعة وزن | 20,000 lb |
أقصى عرض | 60" |
أقصى سمك | 0.105" |
ورقة المواصفات
60" x 0.105" x 20,000 LB Iowa Precision Slear Line
Model Number: SLR 6012-3
serial #68206
Year: mid 1980's
Capacity: 60" x 0.105" (Mild Steel)
Slitting Capacity: 5 cuts of 0.105"
8 cuts of 0.075"
10 cuts of 0.060"
Consisting of:
Entry Coil Car:
Model CC20M
S/N: CC8206
20,000# Capacity
Hydraulic Cylinder Lift
Hydraulic Motor Driven Wheels
Supports included for small O.D. Coils
Uncoiler:
Model UCR20M60
20,000# Capacity
Expansion Range 19" - 23"
Hydraulic Expansion
Powered Holddown Roll
Threading Drive
Peeler Table:
HRRLR-60
Hydraulic Cylinder Actuated
PVC Applicator:
Slear Unit:
Model SLR 6012-3
Entry Pinch Rolls
Slitter Head
6 Roll Straightener
Flying Shear; Rebuilt 2018
Hydraulic Cylinder Operated
-Scrap Winder:
Oscillate Wind
Powered Arbor Retraction for dumping Scrap Ball
-Lift Table/Runout Conveyor:
Model LT10M510
10,000# Capacity
End Discharge
Roller Conveyor Top
20' Length
Side by side rolls 26-1/2" & 26-1/2".
Overall Width with separation bar, 56-1/2"
Scissors Lift type vertical adjustment
Hydraulic Power Unit:
Pendant Control with Flexcel Touchscreen Shear Control System
Allen Bradley Ultra3000 Controls: New in 2013
