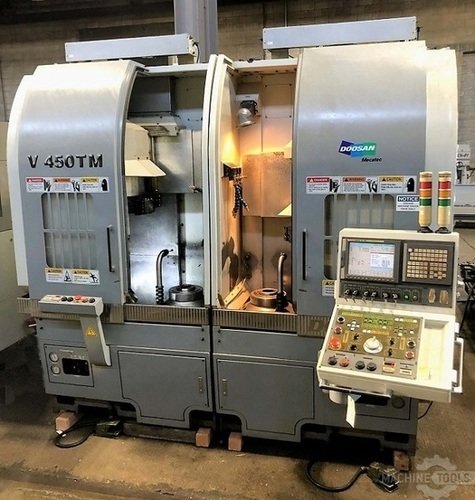

DOOSAN V450TM TWIN SPINDLE CNC VERTICAL TURNING CENTER
Model Puma V450TM, S/N LVG 1010, New Oct. 2005
Stock# Q10287

EQUIPPED WITH
Machine has (1) CNC Control and (2) Vertically Oriented Chuck Spindles,
Fanuc 18i-TB CNC Control,Multiple Part Program Storage, (2) 15" 3-Jaw Chucks,
(2) 12-Position Turrets (right side - static tools, left side - live tooling),
RS-232 Port, (2) Renishaw Tool Presetters, (2) 30 HP Spindle Motors, Auto Lube
System, Automatic Enclosure Doors, (2) Chip Conveyors and
(2) Coolant Tanks.

SPECIFICATIONS
Max Swing ............................................. 22.83"
Chuck Size (QTY .2).................................... 15"
Max. Turning Diameter ................................ 17.72"
Max. Turning Length.................................... 17.72"
X-Axis Travel.......................................... 9.45"
Z-Axis Travel.......................................... 17.7"
Rapid Traverse Rates (X & Z)........................... 787 IPM
Spindle Center Height.................................. 37.4"
Spindle Speed.......................................... 25-2500 RPM
Spindle Nose........................................... A2-8
Spindle Motors......................................... 30 HP
Number of Turrets.... L.Side-Live , R. Side-Static..... 2
Tool Positions on each Turret.......................... 12 ea
Rapid Traverse Rates X & Z............................. 787 IPM
Approximate Machine Dimensions ........................ 105" x 114"
Approximate Machine Height............................. 109"
Approximate Machine Weight............................. 28,500 Lbs

CONDITION: Machine Appears to be in Excellent Condition.
Cutting Hours(Left Side):2,740 - Cutting Hours(Right Side):6,598
