STANKO 2A554تدريبات شعاعي

بطاقة الهوية
441362
علامة تجارية
موديل
حالة
تستخدم - ممتاز
رقم المسلسل
1040
الموقع
Quebec
كندا
الثمن

الوصف

Stanko 2A554 Radial drill in excellent condition----- Capacity in steel: 2’’ Iron: 2.5’’----- Distance min/max column to spindle: 15'' to 63''---- Distance spindle/base: 18'' to 63''---- Speeds: (21)20 to 2000Rpm--- Feeds: (12):0.002'' to 0.100''--- Spindle stroke: 15.75''--- Spindle taper: Morse no 5---- Hydraulic clamping of column and head simultanously or independently--- Pre-selection of speeds and feeds---- Safety protection on torque and thrust---- Technical manuals--- Dimensions:105'' x 41'' x 117''--- Weight:10400Lbs--- Machine is very robust and smooth --- The price include loading on a Truck--- Do not hesitate if you want more pictures--- My name is Yannick Paradis 819-376-0529 and my company is Omicron Machinery--- Thanks--- Have a nice day---

المواصفات

تحويل المواصفات للمتري
طول الذراع
60 "
ضياء العمود.
12.4 "
RPM
2000 rpm
الوزن
10400 lbs or 4700 kgs

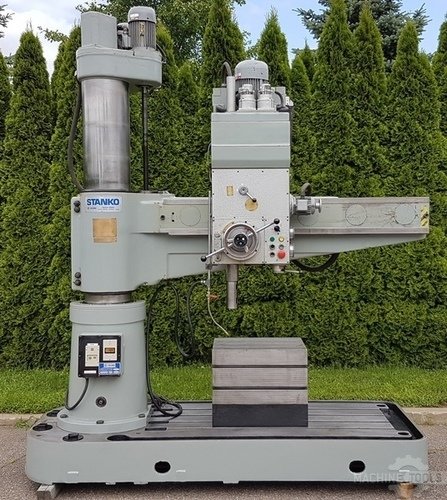

Stanko 2A554 Radial drill in excellent condition

Capacity in steel: 2’’ Iron: 2.5’’
Distance min/max column to spindle: 15'' to 63''
Distance spindle/base: 18'' to 63''
Speeds: (21)20 to 2000Rpm
Feeds: (12):0.002'' to 0.100''
Spindle stroke: 15.75''
Spindle taper: Morse no 5
Hydraulic clamping of column and head simultanously or independently
Pre-selection of speeds and feeds
Safety protection on torque and thrust
Technical manuals
Dimensions:105'' x 41'' x 117''
Weight:10400Lbs

Machine is very robust and smooth

The price include loading on a Truck

Do not hesitate if you want more pictures
My name is Yannick Paradis 819-376-0529 and my company is Omicron Machinery
Thanks

Have a nice day
