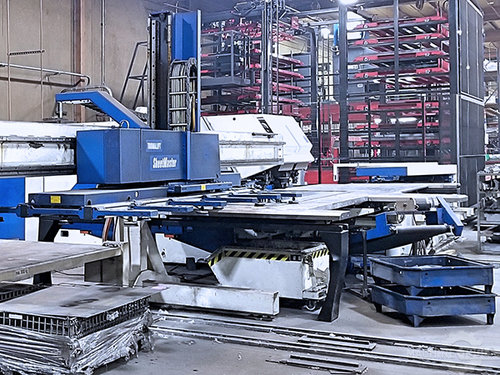

TRUMPF TRUMATIC 6000Lالليزر كومبو اللكمات

بطاقة الهوية
441868
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2004
الموقع
الولايات المتحدة الامريكية
رقم المخزن
2845274

المواصفات

Specifications:
Tonnage Capacity: 25 Tons
Working Range Combined Punch/Laser: 101.7” X 64.9”
Working Range For Laser Processing: 121.4” X 64.9”
Working Range For Punch Processing: 121.4” X 68.5”
Power Output Of Laser: 2700 Watt
Maximum Sheet Thickness: .315”
Maximum Tool Size: 3.000” Dia.
Maximum Workpiece Weight: 506 Lbs.
Maximum Machine Speed: 4258 Ipm
Maximum Number Of Tool Stations: 18 (With Three Clamps)
Fixed Chute For Removal Of Punched Parts/Scrap: 3.15” X 1.96”
Laser Orifice For Removal Off Parts/Scrap: .98”
Maximum Size Parts For Programmable Chutes: 19.68” X 19.68”

Equipped With:
Turret/Laser Combo,
Siemens Sinumerik 840d Cnc Control,
2700 Watt Tlf2700tm Resonator
18 Tool Stations With (3) Work Clamps,
Trumalift Sheetmaster With Dual Carts And Gripper Removal,
Programmable C-Axis Tool Rotation (360 Degree),
Programmable Hydraulic Rotary Ram,
Multi Tool,
Warped Sheet Detector,
Chip/Slug Box,
Loaded With Tooling,
