PEDDINGHAUS PEDDIMAX 110/140 Hشغل حديد

بطاقة الهوية
445473
علامة تجارية
النوع
الموقع
الولايات المتحدة الامريكية
رقم المخزن
13413
الثمن

الوصف

*** WE TAKE TRADE INS | 110 ton Peddinghaus hydraulic ironworker, Peddimax 110/140, (2) foot pedal controls, semi-auto length stop

المواصفات

تحويل المواصفات للمتري
زاوية (L1)
6 "
زاوية (L2)
6 "
زاوية (T)
0.5 "
حمولة
110 T
القدرة
10 hp
الزور
20 "

We are pleased to offer for your consideraton:

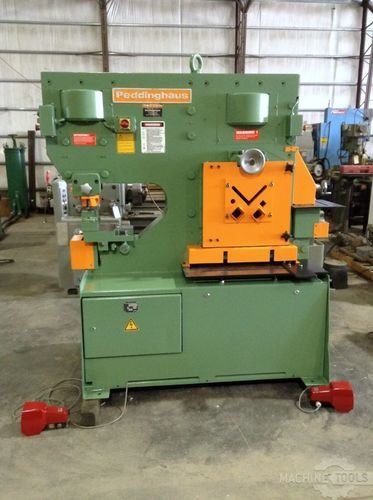

(1) 110 ton Peddinghaus Hydraulic Ironworker

Stock Number: 13413
List Price: $21,950

Manufacturer: Peddinghaus
Model Number: Peddimax 110/140
Serial Number: 4423652294016
Year: 1994

Rated punch tonnage: 110
Punch stroke, infinitely adjustable: 3/8" to 2"
Punch capacity: 1-1/4" x 1"
Punch throat depth: 20"
Punch strokes per minute: 22
Rated shear tonnage: 140
Flat bar shear capacity: 20" x 5/8"; 16" x 3/4"; 12" x 1"
Flat bar shear length: 20-1/4"
Flat bar shear working height: 28-3/8"
Angle shear capacity, 90 degree: 6" x 6 " x 1/2"
Angle shear capacity, 45 degree: 4" x 4" x 1/2"
Round bar capacity: 2" and 1"
Square bar capacity: 2" and 1-3/16"
Notcher capacity, plate: 1/2" square, 1/2" triangular
Notcher capacity, angle: 3" x 3/8" square, 3" x 3/8" triangular
Notch width: 2-9/16" square
Notch depth: 3-5/16" square, 2-9/16" triangular
Notch station working height: 45-1/2" to center of blades
I-beams: 6" H x 12.5 lbs
Flanges: 7" H x 14.75 lbs
Oil capacity: 28 gallons
Motor: 10 HP (7.5 KW)
Volts: 230 / 460
Phase: 3
Cycles: 60
Amps: 30.8 / 15.4
Approximate dimensions: 78" x 41" x 82" high
Approximate weight: 6,500 lbs.

Features:
(2) foot pedal controls
Semi-automatic length stop system
