TIMEMASTER SUPER M 350/6000مخارط المحرك

بطاقة الهوية
446248
علامة تجارية
السنة
1980
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158008
الثمن

الوصف

28" Swing 240" Centers Timemaster SUPER M 350/6000 ENGINE LATHE, Inch/Metric,Gap,Taper, (2) Steadies,(2) 3-Jaws,4-J

المواصفات

تحويل المواصفات للمتري
الأرجحة
30 "
المراكز
240 "

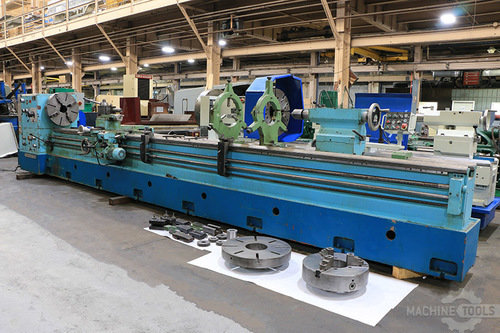

28"/38" x 240" TIMEMASTER/GURUTZPE GAP BED LATHE

MODEL: SUPER M 350/6000, S/N: 2238, NEW: 1980's



SPECIFICATIONS:

SWING OVER BED ............................ 27-9/16"

SWING OVER CROSS SLIDE .................... 18-1/8"

SWING IN GAP .............................. 38-3/16"

LENGTH OF GAP ............................. 11-7/16"

DISTANCE BETWEEN CENTERS .................. 240"

HOLE THRU SPINDLE ......................... 5-1/2"

FRONT & REAR SPINDLE TAPERS ............... D1-11" CAMLOCK

WIDTH OF BED .............................. 16-5/16"

SPINDLE SPEED RANGE (12) .................. 12 - 900 RPM

TRANSVERSE FEED RANGE (90) ................ .0016 - .066 IPR

CROSS FEED RANGE (90) ..................... .0009 - .036 IPR

METRIC THREADS (61) ....................... 1 - 112 MM

INCH THREADS (81) ......................... 1/4 - 112 TPI

TAILSTOCK TAPER ........................... #5MT

TAILSTOCK QUILL TRAVEL .................... 9-7/16"

APPROXIMATE DIMENSIONS .................... 310"L x 48"W x 54"H

APPROX WEIGHT ............................. 17,500 LBS



EQUIPPED WITH:

TAPER TURNING ATTACHMENT

FRONT & REAR CAMLOCKS

9" CAPACITY STEADY REST

12" CAPACITY ROLLER TYPE STEADY REST

19-1/2" 3-JAW CHUCK

15-1/2" 3-JAW CHUCK

23-1/2" 4-JAW CHUCK

THREAD DIAL INDICATOR FOR LONGITUDINAL CARRIAGE TRAVEL

RAPID TRAVERSE ALL DIRECTIONS

COOLANT SYSTEM

HARDENED BED

15 HORSE POWER MAIN MOTOR



 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE





FOR MORE INFORMATION: Call David at 973-497-7570
