CINCINNATI LANDIS RK 350-20المطاحن الامركزية

بطاقة الهوية
446329
علامة تجارية
موديل
السنة
2001
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
7943
الثمن

الوصف

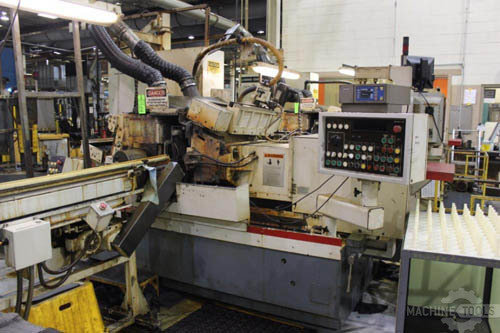

Landis Cincinnati - CNC Twin Grip Centerless Grinder | 6"

المواصفات

تحويل المواصفات للمتري
سعة الشغل
6 "
قطر عجلة التجليخ
24 "

Basic Information
Model: RK Series 350-20
Manufacturer: Landis Cincinnati
Serial #: HK 31095
Location: Huntington Park, CA
Year Built: 2001

Specifications
Work Diameter Capacity: 1/2"- 6"
Work Diameter With Thru Feed Or Infeed Work Rest: 1/2"- 3"
Max. Diameter Capacity With Special Work Rest: 6"
Grinding Wheel Width: 20"
Grinding Wheel Diameter (Max./Min.): 24"/ 17"
Grinding Wheel Hole Size: 12"
Grinding Wheel Speed: 8,500 FPM
Grinding Wheel Truing:
Traverse Rate (Across Wheel): 1- 50 IPM
Max. Traverse Distance (Across Wheel): 22.28"
Max. Profile Depth: 1"
Worm Gear Reducer Ratio: 10:1
Regulating Wheel Width: 20"
Regulating Wheel Diameter (Max./ Min.): 14"/ 11"
Regulating Wheel Hole: 6"
Regulating Wheel Speeds:
Low Range: 12- 56 RPM
High Range: 56- 300 RPM
Regulating Wheel Housing Swivel (Workfeed Angle): +8 Degrees To -2 Degrees
Regulating Wheel Truing:
Traverse Rate (Across Wheel): 1- 50 IPM
Max. Traverse Distance (Across Wheel): 21.02"
Max. Profile Depth: 0.63"
Worm Gear Reducer Ratio: 10:1
Dresser Swivel: +6 Degrees To -2 Degrees
Single Axis Slide Drive Positioning Rate: 125 IPM
Swivel Plate (Front & Rear): 1/2"
Lower Slide Max. Travel: 10"
Upper Slide Max. Travel: 6.02"
Hydraulic System Reservoir Capacity: 30 Gallons
Dimensions (L x W x H): 170" x 80" x 95"
Weight: 26,000 Lbs.

Equipped with
- Allen Bradley 1336 Plus II Control
- Thru Feed Attachment
- Auto Dress
- Auto Balance System (SBS SB4500)
- Auto Compensation
- Servo Drives
-Coolant System W/Oil Containment & Recirculation System
- Note: In Service When Removed From Caterpillar Corp- Morganton, NC.
- Horsepower: 50
