BECKWOOD 4PDA110F2424مكابس ضغط مسحوق

بطاقة الهوية
446473
علامة تجارية
موديل
السنة
2002
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
6680P
الثمن

الوصف

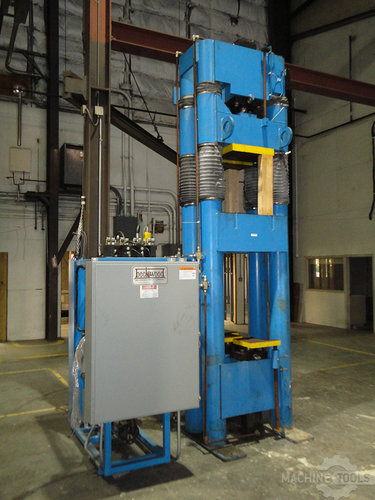

Beckwood - Four Post Hydraulic Powder Compaction Press (Up & Down Acting) | 110 Ton x 12" x 12" x 3"

المواصفات

تحويل المواصفات للمتري
حمولة
110 T
المشوار
18 "

Basic Information
Model: 4PDA110F2424
Manufacturer: Beckwood
Serial #: 30235F
Location: Painesville, OH
Year Built: 2002

Specifications
Tonnage: 110
Number Of Ram Cylinders (4): 4 @ 55 Ton each @2,860 PSI
Retract Tonnage: 30
Ram Speeds:
Approach: 45 IPM
Pressing: 6 IPM
Return: 55 IPM
Dual Upper Down Acting Rams:
Number Of Ram Cylinders: 2
Ram Stroke: 18"
Ram Size (2): 9" Diameter x 20" Long
Ram Bolster Size (2) (Drilled & Tapped): 12" x 12" x 3"
Dual Lower Up Acting Rams:
Number Of Ram Cylinders: 2
Ram Stroke: 22"
Ram Bolster Size (2) (Drilled & Tapped): 10" x 16" x 1 1/2"
Distance From Upper Ram To Lower Ram: 67"
Dual Center Of Press Die Holder:
Die Mounting Cavities Size (2): 11" x 11" x 15" Deep
Fixed Position Weldment: 15" Centers
Hydraulic Oil Reservoir: 60 Gallons
Dimensions (L x W x H): 48" x 48" x 160"
Max. Cutting Length: 6'
Distance Between Housings: 76"
Rake Angle: 1/4"
Number Of Hold Downs (Hydraulic): 7
Throat Depth: 18"
Strokes Per Minute: 60
Dimensions (L x W x H): 110" x 75" x 70"
Weight: 13,600 Lbs.
Max. Forming Length: 122"
Roll Diameter: 6"
Rolling Speed: 16 FPM
Dimensions (L x W x H): 160" x 60" x 58"
Weight: 7,000 Lbs.

Equipped with
- Micrologix 1000 PLC Control
- Upper & Lower Rams Are Independently Controlled
- Neoprene Bellows Ram Covers
- Lower Rams Are Secured To A Anti Rotation Guide
- There Are 4 Presses Available & The Price Is For One Only
- Note: These Machines Were Filled With Oil But Never Used Like New
- Horsepower: 15
