SHARP 40200Mمخارط الفجوة

بطاقة الهوية
447455
علامة تجارية
موديل
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
1967
الثمن

الوصف

40” Swing (51” with Gap Removed) X 200” Manual Gap-Bed Engine Lathe with 6” A2-11 Camlock Spindle Bore, 30HP Drive Motor, 16 Speed Gear Drive, Tailstock, Follower Rest, 13.2” Swing Over Cross-Slide, 4 Jaw 16” Chuck, Coolant System and Splash Guarding, Face Plate, Steady Rest, 4-Way Tool Post, Halogen Work Light and Tool Kit Included.

المواصفات

تحويل المواصفات للمتري
الأرجحة
40 "
دوران فوق الفجوة
51 "
المراكز
200 "

STANDARD EQUIPMENT:

Coolant Device
X, Z – axes Auto Lubrication System
X, Z – axes with Turcite-B
Steady Rest 16”, Bearing Type
Face Plate with 4-Jaw 40”
Dead Center
Center Sleeve MT#6
Toolpost Screw Wrench
Level Pads
Tools and Tool Box
Operation Manual
Lubricating Device for Headstock
Spindle Motor :30HP
Magnetic Brake
Metric / Inch Gear Box
Change Gear
Longitudinal & Cross Rapid Feeding
Tailstock Two Steps Device
Tool Kit (Including: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of Allen wrenches, Phillips Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator and Can of Paint)

FEATURES:

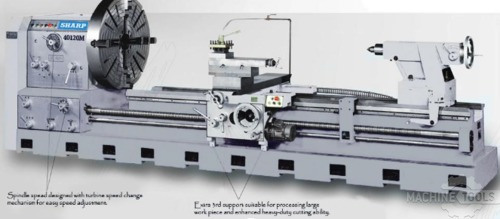

Casting: One piece casting work with reinforced inner structure, extra 3rd support to be suitable for processing of large workpiece and enhanced heavy-duty cutting ability.The removable gap has built in reinforced structure and does not affect any cutting stability.

Spindle: Bore 6 “, 16-step speed change, turbine speed change mechanism with no easy speed jumping and three point support for the box. Fitted with adjustable, electromagnetic brake for easy braking adjustment according to different workpiece materials and speed. Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise. Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.

Gearbox: Metric / Inch gear box free from gear exchange to improve production efficiency. Speedy installation, forward and reverse movement, safety installation with automatic sealed oil bath lubrication system.

Apron Feeding Device: Swift transmission, positive and negative rotation movement and safety device with auto sealed oil bath lubrication & cross rapid feeding.

Saddle: Anti-friction processed surface with regular oil injection, lubricated and friction endurable.

Tailstock: Two stage in-feed device, swing arm movement to have smooth and labor saving operation.

Electrical Control: 2 stage safety start-up device and overloading power cut system.

Castings: FC-30 steel is used for main structures like base, spindle, saddle and tailstock, which are annealed and have no deformation.

Processing: Base, spindle, saddle, slot surface of traveling plate, tool base sliding table, tailshaft pipe are high frequency treated, precision ground for extended service life.

Headstock: Gear and shaft are made of super alloy material with FAG bearings to offer durable cutting and low production noise, Turbine speed change mechanism with an easy speed jump. Three point support for the box.

Electric box: 2 stage safety start-up device, durable cutting and low production noise. Overloading power cut system, Filtered with adjustable, electromagnetic brake for easy braking adjustment according to different workpiece materials and speed.

SPECIFICATIONS:

Capacity

Swing Over Bed: 40”
Swing Over Cross Slide: 24.02”
Distance Between Centers: 200”

Headstock

Spindle Bore Diameter: 6.0”
Spindle Speeds: 16 Speeds
Range of Spindle Speeds: 4-420 RPM
Spindle Nose: A2-11

Carriage

Width of Carriage: 34.65”
Cross Slide Travel: 27.56”
Compound Travel: 15.75”
Max. Size Cutting Tool: 1.57” x 1.57”

Bed

Swing Over Gap: 51.19”
Width of Gap: 23.43”
Bed Length: 103.5”
Bed Width: 15-3/4”

Tailstock

Quill Travel (graduated): 12”
Quill Diameter: 4.53”
Quill Taper: MT#6

Threads

Metric Threads: 1 – 120mm (62 Nos)
D.P. Threads: 1 – 120 D.P. (70 Nos)
M.P. Threads: 0.25 – 30 M.P. (53 Nos)
Range of Index Pitch: 0.47”
Feed Rod Diameter: 1.26”
Range of Longitudinal Feed: 0.0024” – 0.28” in/rev
Range of Cross Feed: 0.0012” – 0.14” in/rev

Feeds

Longitudinal Feeds: 0.0024” – 0.28” in/rev
Cross Feeds: 0.0012” – 0.14” in/rev
Longitudinal Rapid Feeds: 82.68 in/min
Cross Rapid Feeds: 41.34 in/min
Leadscrew Diameter & Pitch: 2.36” x 2 T.P.I.

GENERAL
Spindle Motor (220V or 440V, 60, 3) 30 HP
Net Weight (approx.) 28,820 LBS
Dimensions ( L X W X H) 279.5” x 80.7” x 58.7”
Standard Color Gray
