SCHIESS KE 125عمودي مملة ميلز (incld VTL)

بطاقة الهوية
449111
علامة تجارية
موديل
السنة
1953
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
10802
نطاق السعر
$10,001 - $50,000 USD

الوصف

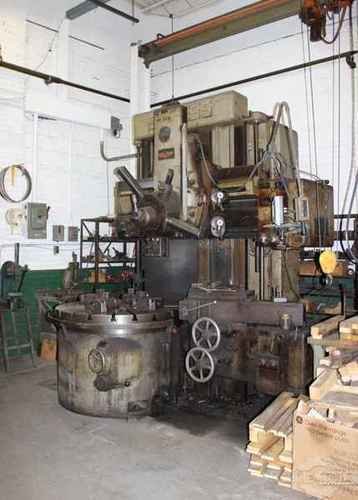

49" SCHIESS ADJUSTABLE RAIL VERTICAL BORING MILL, MODEL, KE125, T.R. Wigglesworth Machinery Co. , Under Power.

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
49 "
الأرجحة
55 "
ارتفاع الشغل U/R
43 "
القدرة
40 hp
RPM
237 rpm

ONE (1) USED
49" SCHIESS ADJUSTABLE RAIL VERTICAL BORING MILL

NEW: 1953
MODEL: KE 125

SPECIFICATIONS:
MAX. TURNING DIAMETER / TABLE DIAMETER......... 49"
MAX. TURNING DIAMETER WITH SIDE HEAD DOWN...... 55"
MAX. TURNING HEIGHT OVER TABLE................. 43"
MAX. VERTICAL TOOL TRAVEL FOR RAIL HEAD........ 27 1/2"
MAX. DISTANCE TABLE TO CROSS-RAIL TURRET....... 52"
MAX. HORIZONTAL TOOL TRAVEL FOR SIDE HEAD...... 25 1/2"
MAX. DIST. TABLE TO BOTTOM OF SIDE HEAD TURRET. 29 1/2"
VERTICAL TRAVEL OF CROSS-RAIL.................. 29 1/2"
MAX. LOAD ON TABLE............................. 4 TONS TABLE SPEEDS (16).............................. 4.7 - 237 RPM NO. OF HORIZ., VERTICAL & ANGULAR FEEDS (EACH). 12 FEEDS PER TABLE REVOLUTION..................... 0.0023 - 0.262"
RAPID TRAVERSE OF HEADS........................ 89 IPM TRAVEL OF CROSS-RAIL........................... 15 3/4 IPM MAIN MOTOR..................................... 40 HP RPM OF MOTORS AT 50 CYCLES..................... 1500 RPM

EQUIPPED WITH:

(4) HEAVY DUTY BORING MILL JAWS
(2) BOX TYPE TOOL HOLDERS
(3) BORING BARS
ACCURITE 2-AXIS DIGITAL READOUT SYSTEM
PENDANT CONTROL
SWIVEL TURRET SLIDE
SIDE HEAD W/ 4) POSITION TOOL BLOCK

SPECIFICATIONS SUBJECT TO VERIFICATION
