K.O. LEE B6062HBأداة وكتر المطاحن

بطاقة الهوية
449178
علامة تجارية
موديل
السنة
1989
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158001

الوصف

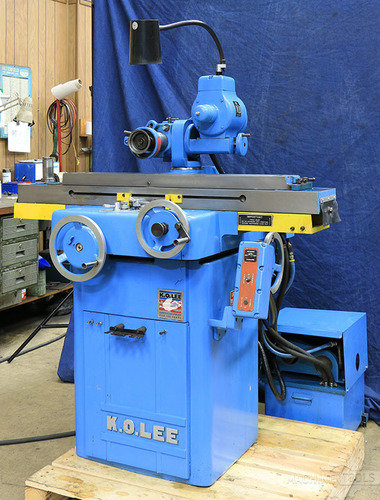

K.O. Lee B6062HB, NEW 1989, DAKOTA SERIES, TILT WHEEL TOOL & CUTTER GRINDER, HYD. TABLE & BALL BEARING TABLE, F & R HANDWHEELS

المواصفات

K.O. LEE "DAKOTA" SERIES UNIVERSAL TOOL & CUTTER GRINDER WITH TILTING WHEELHEAD STANDARD



** "HB" MODEL - HYDRAULIC TABLE FEED & BALL TRACK TABLE **

** HAS THE OPTIONAL FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE  **



MODEL: B6062HB        S/N: 26248-YF       NEW: 1989



  SWING OVER TABLE .............................. 12-1/4"

DISTANCE BETWEEN TAILSTOCKS ..................... 32"

TABLE WORKING SURFACE ........................... 5-1/4" X 37-1/4"

SUB TABLE ....................................... 8" X 48"

LONGITUDINAL TABLE TRAVERSE ..................... 20"

TABLE FEED PER REV. OF HANDWHEEL:

FAST ............................................ 2-13/16"

SLOW ............................................ 9/16"

CROSS FEED ...................................... 8"

FEED PER REV. OF HANDWHEEL (.001" GRAD.) ........ 0.100"

VERTICAL MOVEMENT OF COLUMN ..................... 10-1/2"

FEED PER REV. OF HANDWHEEL (.001" GRAD.)......... 0.050"

COLUMN DIAMETER ................................. 6"

MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL

SHAFT TO TABLE .................................. 5-3/8" / 15-1/4"

MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE

  OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,

  SPINDLE 90 DEG. TO TABLE ...................... 6-3/8"

MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE

  OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,

  SPINDLE 90 DEGREES TO TABLE ................... 11-1/2"

TABLE SWIVELS (CALIBRATION: 3" PER FT.,

  15 DEG. EITHER SIDE OF CENTER) ................ 225 DEGREES

WHEEL HEAD SWIVEL ............................... 360 DEGREES

MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ....... 3-1/2"

MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL... 5"

SPINDLE SPEED RANGE

(HEAVY DUTY WHEELHEAD) .......................... 2840 TO 5330 RPM

APPROXIMATE MACHINE WEIGHT ...................... 1,300 LBS



  EQUIPPED WITH:

"HB" MODEL - HYDRAULIC TABLE FEED & BALL TRACK TABLE

HAS THE OPTIONAL FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE

"DAKOTA" HEAVY DUTY #B6055HD UNIVERSAL GRINDING

BIJUR LUBRICATOR (ONE-SHOT)

OUR MACHINE IS WIRED PRESENTLY FOR 230 VOLTS



WHEELHEAD FEATURES:

- SWIVELLING & TILTING (22 DEG. EITHER SIDE OF VERTICAL)

- 1 HP K.O. LEE MODEL #B6223GW BALL BEARING MOTOR, WIRED FOR 3/60/208-230-460 VOLTS

- 3-1/2" TO 8" DIAMETER WHEELS





AVAILABLE FOR PURCHASE WITH THIS MACHINE:

K.O. LEE MODEL #BA986 RADIUS GRINDING ATTACHMENT, COMPLETE

  WITH K.O. LEE B942 "NON-MOTORIZED" "SENSITIVE" WORKHEAD.

K.O. LEE B7092 NON-MOTORIZED WORKHEAD WITH 5C COLLET DRAW BAR & INDEX PLATE





** EXCEPTIONAL CONDITION& APPEARANCE - THIS IS A TOP NOTCH MACHINE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **





FOR MORE INFORMATION: Call Andy at 973-497-7600
