CINCINNATI SAAMطابعات 3D

صور ( 1 )

الثمن
علامة تجارية
موديل
SAAM
بطاقة الهوية
449255
النوع
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3219
بطاقة الهوية
449255
علامة تجارية
موديل
SAAM
النوع
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3219
الثمن

الوصف

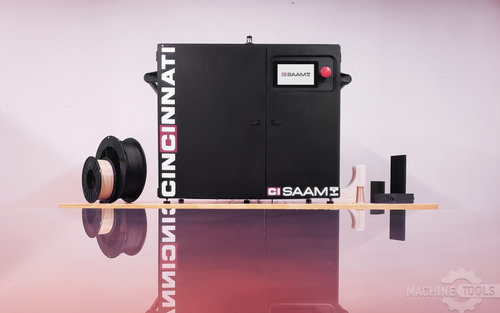

7.9” X 7.4” X 9.4” High Temperature 3D Printer with CI Print Local & Web Based Printer Management Software, 518°F Nozzle Temp, 194°F Degree Heated Bed Temp, Heated Cabinet and Sealed Spool Drying Chamber Designed for Use with ULTM 9085 PEI, Carbon Fiber Nylon and Makeshaper PLA Spool as well Other Printable Materials.

المواصفات

SAAM is optimized for printing in 3D printing’s most demanding materials including carbon-fiber and glass-fiber reinforced polymers to provide fabricators the ability to make strong, stiff, and custom tools more rapidly and inexpensively than conventional tools.
SAAM is flexible: compatible with all industry-standard 3D slicing software including Cura, Simplify3D, Slic3r, and more. Advanced users can take full control of their SAAM FreeForm system to print in any compatible open material from any supplier.
With over 180,000 hours of testing, the SAAM is built to outlast competing 3D printers by years and years.
GENERAL SPECIFICATIONS

Build Envelope: 7.9” x 7.4” x 9.4” (20 cm x 19 cm x 24 cm)
Max Nozzle Temperature: 842°F (500°C)
Max Bed Temperature: 260°F (500°C)
Enclosure: Metal, Insulated Actively Heated Chamber
Maximum Resolution: 0.0004” (10 micron)
Part Accuracy: 0.005” (120 micron)
Nozzle Diameter: 0.016” (0.4 mm) (Other Sizes Available)
Filament Diameter: 1.75 mm ± 0.05 mm
Print Head: Direct Drive (Modular)
Printer Dimensions: 30” x 22” x 23” (76 cm x 56 cm x 59 cm)
Power Requirements: 110 Volts, 2kW, Single Phase
Certified Materials: ULTEM™ 9085 PEI, CarbonX™ Carbon
Fiber-Nylon, Makeshaper PLA Spool

Available Options:

ULTEMTM PEI Spool 500g Spool
1- 500-Gram Spool of ULTEMTM 9085 PEI
CarbonXTM Carbon Fiber-Nylon Spool
1-kg Spool of CF-Nylon
CarbonXTM Carbon Fiber-Nylon Bundle
35 1-kg Spools of CF-Nylon
Toner Plastics PLA Spool (2.2 Pounds, 1kg)
1-kg Spool of PLA
Toner Plastics PLA Bundle
35 1-kg Spools of PLA

INCLUDES: CI Print Local & Web Based Printer Management Software, 518°F Nozzle Temp, 194°F Degree Heated Bed Temp, Heated Cabinet and Sealed Spool Drying Chamber Designed for Use with ULTM 9085 PEI, Carbon Fiber Nylon and Makeshaper PLA Spool, Other Compatable Open Printable Materials and a 6 Month Warranty (Terms and Conditions Apply).
