FINN-POWER A5-20SBبرج اللكمات

بطاقة الهوية
449398
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1999
الموقع
النمسا
رقم المخزن
AT-PUN-FIN-1999-00001

الوصف

This Finn-Power A5-20SB Punching Machine was manufactured in 1999 in Finland and has been working for only 12415 hours. Equipped with a SIEMENS SINUERMIK 840 D Control unit, this machine can operate with a punching force of 230 kN.

المواصفات

تحويل المواصفات للمتري
حمولة
25 T
محطة تارت#
21 station

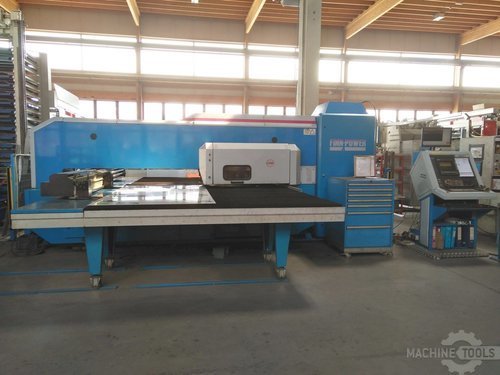

Finn-Power A5-20SB Punching Machine

Production Hours: 12415

General Data:
Measurements width: 6000 mm
Measurements depth: 4100 mm
Measurements height: 2070 mm
Machine weight: 12000 kg

Control Unit:
Brand: SIEMENS
Model: SINUMERIK 840D
CNC main language: German
CNC language customizable: Yes

Main Drive:
Punching force: 230 kN
Maximum sheet thickness: 8 mm

Movement:
X-Axis Movement: 2084 mm
Y-Axis Movement: 1317 mm

Workpiece:
Workpiece X: 2530 mm
Workpiece Y: 1270 mm
Workpiece weight: 200 kg

Tools:
Number of station: 1
Slots in storage: 20

Max Material Thickness:
Steel: 8 mm
Stainless steel: 8 mm
Aluminium: 8 mm

Media:
Main electronic connection: 380 V
Power consumption: 40 kVA
