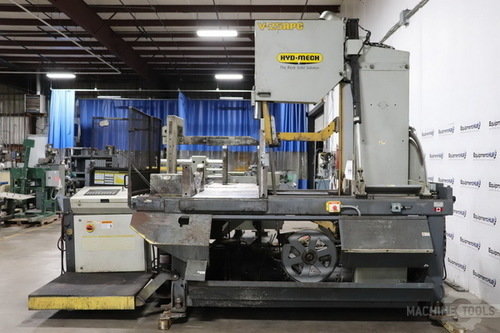

HYD-MECH V-25APCمناشير باند عمودي
Play YouTube Video
Condition: Very Good
Rectangular Capacity at 90° 30" H x 25" W
Round Capacity at 90° 25"
Capacity at 45 deg 21" x 25":
Capacity at 60 deg Right 14-1/2" x 25"
Capacity at 60 deg Left 13-1/2" x 25"
Blade Speed 75-350 SFM
Blade Dimensions 1.5" x 21'
Blade Drive 10 HP Vari Speed
Auto Shuttle Multi Index 60"
Weight 15000 LB
Dimension 158" W x 254" L x 123" H
11' H X 6-1/2' W X 10-1/2' L
PC Automatic Controlled or manual control
Bar Feed Bundling Option
6° canted head allows for efficient cutting and improved blade life
Bar feed, left side
Shuttle features automatic multi-indexing up to 60" (120" optional) in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.
Automatic programmable mitering with "go to" angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached to saw column.
10 HP VFD. True direct blade drive no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch
Easy access electrical panel and hydraulics
Pop-up feed roller - one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Replacement cost as equipped $120,000
