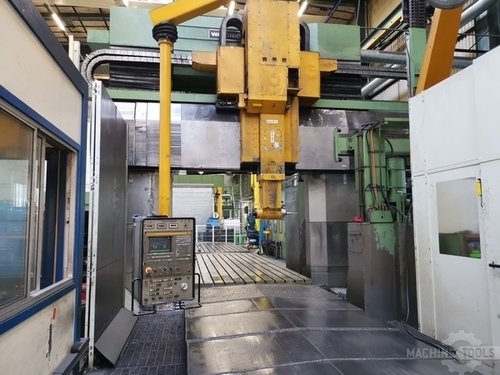

WALDRICH SIEGEN PCM 3000 AT-RQ1المسوي نوع ميلز

بطاقة الهوية
449428
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2019
الموقع
المانيا
عودة السياسة
كما هو
نطاق السعر
أكثر من $100,001 USD

الوصف

Waldrich Siegen CNC Portal milling machine type PCM 3000 AT-RQ1. New 1991, Modernization Year 2006 – New Electric cabinet, new drives, axis motors and cables. CNC Siemens 880 M, the machine is prepared for new CNC control. Headchanger 6 places, ( totally 9 heads available) Toolchanger 144. 2 x chipconveyors. X Axis- 15.000 mm Y Axis-4.000 mm Z Axis 1.250 mm W Axis 2.500 mm Between columns 3.000 mm 2 x tables 6500 x 2500 mm, can work together or separate Table load as it is now: 100.000 kg Spindle motor 63 kW, 2.400 rpm Feeds X axis 5-15.072 mm/min Feeds Y axis 5-15.000 mm/min Feeds Z axis 5-10.288 mm/min Feeds X axis 5-15.072 mm/min Feeds W axis 11-2.700 mm/min Width 10.150 mm Length-41.000 mm Height-7.070 mm Weight ca. 220.000 tons The machine is copletelly overhouled and modernized with new CNC.

المواصفات

تحويل المواصفات للمتري
الجدول-W
98.43 "
الجدول-L
551.2 "
ارتفاع أسفل القضيب
137.8 "
المسافة بين الجرابات
118.1 "
موتور
84.5 hp
RPM
2400 rpm
الأبعاد
W 10.150, L 41.000, H 7.070
الوزن
220.000 kg
CNC تحكم
CNC (SINUMERIK 840 DsL)

Waldrich Siegen CNC Portal milling machine type PCM 3000 AT-RQ1. New 1991, Modernization Year 2006 – New Electric cabinet, new drives, axis motors and cables.
CNC Siemens 880 M, the machine is prepared for new CNC control.
Headchanger 6 places, ( totally 9 heads available)
Toolchanger 144.
2 x chipconveyors.
X Axis- 15.000 mm
Y Axis-4.000 mm
Z Axis 1.250 mm
W Axis 2.500 mm
Between columns 3.000 mm
2 x tables 6500 x 2500 mm , can work together or separate
Table load as it is now: 100.000 kg
Spindle motor 63 kW, 2.400 rpm
Feeds X axis 5-15.072 mm/min
Feeds Y axis 5-15.000 mm/min
Feeds Z axis 5-10.288 mm/min
Feeds X axis 5-15.072 mm/min
Feeds W axis 11-2.700 mm/min
Width 10.150 mm
Length-41.000 mm
Height-7.070 mm
Weight ca. 220.000 tons

The machine is copletelly overhouled and modernized with new CNC.
