RAMBAUDI RAMSPEED H 40Lمراكز التجهيز العمودي

بطاقة الهوية
449575
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1997
الموقع
اسبانيا
رقم المخزن
ES-MIL-RAM-1997-00001

الوصف

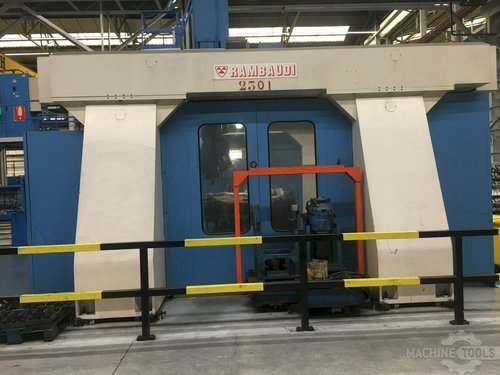

This Rambaudi Ramspeed H 40L Vertical Machining Center was manufactured in 1997 in Italy and has been operative for 36466 hours. It is operated through a Num 1060 Control unit, this machine has a spindle speed range up tp 3000 rpm. It presents good conditions.

المواصفات

تحويل المواصفات للمتري
X
177.2 "
Y
106.3 "
Z
49.21 "
RPM
3000 rpm
الجدول-W
98.43 "
الجدول-L
196.9 "
أكسات
3

Rambaudi Ramspeed H 40L Vertical Machining Center

Production Hours: 36466

General Data:
Measurements width: 6046 mm
Measurements depth: 2700 mm
Measurements height: 5490 mm
Machine weight: 40000 kg

Control Unit:
Brand: Num
Model: 1060

Main Drive:
Number of spindles: 1
Spindle speed range: 3000 rpm

Movement:
X-Axis Movement: 4500 mm
Y-Axis Movement: 2700 mm
Z-Axis Movement: 1250 mm

Workpiece:
Workpiece X: 4500 mm
Workpiece Y: 2500 mm
Workpiece Z: 1250 mm

Table:
Outer length: 5000 mm
Outer width: 2500 mm
Number of tslots: 10

Tools:
Slots in storage: 6
Max weight: 2 kg
Max tool length: 300 mm
