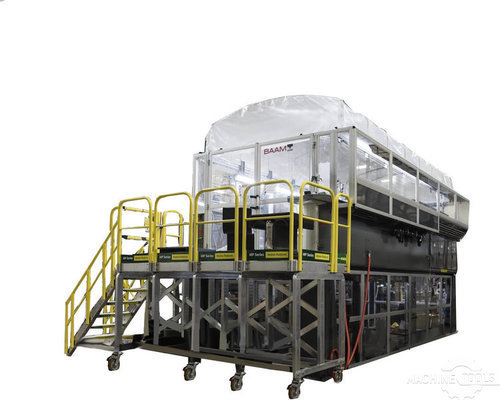

CINCINNATI BAAM 608طابعات 3D

صور ( 1 )

الثمن
علامة تجارية
CINCINNATI BAAM
موديل
608
بطاقة الهوية
449598
النوع
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3225
بطاقة الهوية
449598
علامة تجارية
CINCINNATI BAAM
موديل
608
النوع
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3225
الثمن

الوصف

140” x 66” x 96” Capacity Pelletized 3D Printing System with Cincinnati HMI Touch Screen Interface Controller, Pelletized Material Feeding Hopper, 80LBS P/Hour Feedrate Through Extruder, Dynamic Flow Control, Linear Motor Drives, Heated Table, Complete Enclosure Compatible with ABS, PPS, PC, PLA, and PEI Materials including the Addition of Carbon Fiber, Glass Fiber, or Organic Fiber For Strength and Stability Part Improvements

المواصفات

FEATURES:

System: 3/4” to 1-1/2” Steel Frame Construction
Gantry: Lightweight Aluminum-Honeycomb
Table: Heated Z-table
Printing Style: Thermoplastic Extruder
Leveler: Z-Leveler
Drive Type: A/C brushless Permanent-Magnet Linear Servo Motors (X & Y
Axis) with Dual Linear Servo Motors on X-Axis
Feedback: High-Resolution Open Style Linear Encoders
Guideways: Preloaded Extended-lube-interval Linear Bearings
Cooling: Recirculating Water-Cooling System with Air Cooled,

Refrigerated Chiller

Enclosure: Complete Protective Enclosure/Thermal Barrier
Max Workpiece Size: 140” X 65” X 98”

CONTROLLER:

Cincinnati HMI With High –resolution 22” Lcd Color Touch Screen
Microsoft Windows Operating System
English Language Control Display
Solid State Hard Drive
Network Interface
DSP Based Motion Controller
USB Convenience Outlet
Inch/Metric Programming
Message Display
Custom Macro Capability
Mirror Image
Background Edit
Work Coordinate System
Coordinate System Rotation
Feedrate Override From 30% To 100%
Jog Mode
Block Delete Softkey
Exact Stop Mode
Dry Run Capability
Program Test Mode
Single Block Program Cycle
Scaling
Global Editing
System Dimensions: 308” X 144” X 198”
System Weight: 32,000 LBS
Voltage: 460V

INCLUDES: Cincinnati HMI Touch Screen Interface Controller, Pelletized Material Feeding Hopper, 80LBS P/Hour Feedrate Through Extruder, Dynamic Flow Control, Linear Motor Drives, Heated Table, Complete Enclosure Compatible with ABS, PPS, PC, PLA, and PEI Materials including the Addition of Carbon Fiber, Glass Fiber, or Organic Fiber For Strength and Stability Part Improvements.
