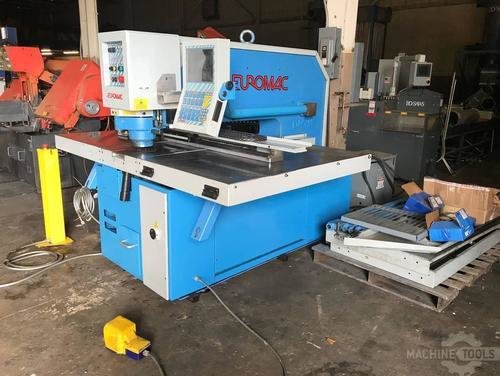

EUROMACاللكمات محطة واحدة
Tonnage: 33 tons
X-axis stroke: 50" + automatic repositioning
Y-axis stroke: 40" (throat)
X-axis speed (adjustable from 5%-100%): 200 - 1,890 IPM
Y-axis speed (adjustable from 5%-100%): 200 - 1,890 IPM
Maximum hits per minute on 1" centers: 150
Maximum strokes per minute nibbling: 220
Maximum sheet thickness: 1/4"
Maximum sheet weight: 220 lbs.
Programmable ram stoke with Amada or Strippit tooling: 1.18"
Programmable ram stroke with Trumpf tooling: 2.36"
Sheet handling: hydraulic assisted clamping
Maximum hole size with thick turret or Strippit Fab tooling: 3"
Working surface: 97.50" x 50.70"
Motor: 5.5 H.P. 220 volt 3 phase
Hydraulic tank capacity: 30 gallons
Dimesions: 98" x 79" x 74"
Weight: 10,750 lbs.
Repositioning: Two automatic hydraulic repositioning hold downs
12.1" LDC display panel with adjustable background illumination
Graphic icons for punching functions (punching, notching, and nibbling) for fast easy parts programming
3.5" floppy disk drive for saving parts programs
Ability to jog ram, capable of generating full tonnage at any point in the stroke, enables stroke to be infinitrly varied for maximum strokes per minute, ability to perform forming operations such as slots, fins, flanges, louvers, etc..
Hydraulic assisted locking of punch and die
Ensures accurate tool positioning and alignment, enables quick tooling change over in just 10 seconds
Rigid cast "C" frame
Meehanite steel casting virtually eliminates deflection and lateral movement to ensure long tool life, Punch and die mounting positions and machined in a single operation to obtain perfect tool alignment
6-station multi tool
Large assorment of punched and dies
