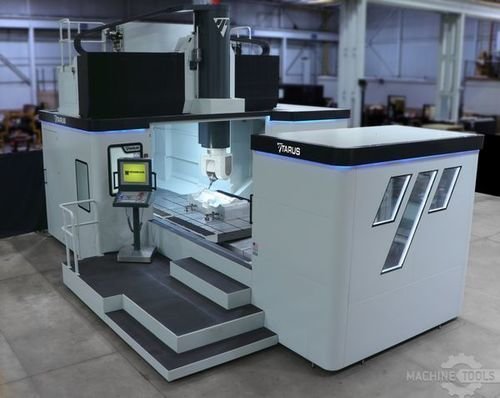

TARUS PMT5, 5-AXIS FIXED BRIDGE - MOVING TABLEالعملاقة الآلات مراكز (incld. بريدج وعمود مزدوج)
Specifications of Machine
X Axis is 3048 mm
Y Axis is 2896 mm, space between columns is 2451 mm
Maximum Feedrate is 25 meters per minute
Maximum Acceleration Rate is 2 meters per second
Worktable is 1828 mm by 3048 mm
Machine structure is welded steel plate. Ribbed and Boxed Structures, fabricated and machined by TARUS in the USA
X, Y and Z Axes are Ballscrew driven (76.2 mm diameter, 10 mm pitch) with Liquid Cooled Torque Motors directly coupled to Ball-nuts
Linear Bearing Rails on All Axes
Kessler 2AK-G4 Fork Style Clamping Milling Head
Fork Style Milling Head, Torque Motor Direct Drive, Hydraulic Clamping, Cartridge Spindle
A Axis is +/- 105 degrees, C Axis is +/- 200 degrees
A Axis Positioning Force is 1200 Nm, C Axis is 1100 Nm
A Axis Clamping Force is 3000 Nm, C axis is 4000 Nm
Spindle: Kessler Cartridge, HSK63, 18,000 RPM, 70kW, 110 Nm (peak torque 0-6000 rpm)
Coolant and Air through Spindle
Machine is equipped Heidenhain TNC 640 CNC and all options needed for this particular machine and the process.
Heidenhain Servo Drives and Absolute Position Scales
Heidenhain Wireless Measuring Probe for Spindle
Heidenhain Wireless Tool Length Measurement Probe
Full integration of CNC and Machine including PLC Programming
Automatic Tool Changer
Max Length of Tool: 400 mm
Max Diameter of Tool: 180 mm
Max Weight of Tool: 12 kg
Magazine fixed side column, exchanger arm travels on manipulator slide which passed through automatic door.
Magazine and Manipulator are driven by Servo Motor, Exchanger Arm Rotation and tool Pull / Insert by Pneumatic
Coolant System and Conveyors
Flood coolant pumps, recovery and filtration system
Conveyors on Each side of Worktable mounted in pans to collect coolant
Full, lighted Enclosure including retractable roof for loading and easy access.
Mist Blaster brand Mist Extractor with downdraft ventilation integrated into the side columns. Coolant is drained back to flood coolant system prior to filtration.
