HEALD 174المطاحن الداخلية

صور ( 10 )

علامة تجارية
موديل
بطاقة الهوية
451224
حالة
تستخدم - ممتاز
رقم المسلسل
28495
الموقع
Massachusetts
الولايات المتحدة الامريكية
بطاقة الهوية
451224
علامة تجارية
موديل
حالة
تستخدم - ممتاز
رقم المسلسل
28495
الموقع
Massachusetts
الولايات المتحدة الامريكية

الوصف

Excellent condition and appearance. Inspect under power!

المواصفات

تحويل المواصفات للمتري
الأرجحة
48 "
أقصى تجليخ للثقب
20 "
المشوار
13 "
دريسر (نعم/لا
Yes
الأبعاد
137" x 72"
الوزن
16,700 Lbs.

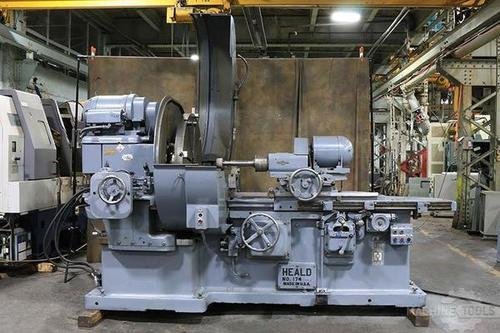

#174 HEALD GAP-TYPE LARGE CAPACITY INTERNAL GRINDER

"HEAVY-DUTY MACHINE DESIGNED TO HANDLE WORK REQUIRING LARGE SWING AND PROVIDES
UNUSUAL OPERATION CONVENIENCE EVEN WITH THE MOST AWKWARD WORK PIECES.
IT WILL READILY HANDLE LARGE PARTS WITH EASE."

S/N: 28495

SWING INSIDE STD. CHUCK GUARD................ 48"
MAX. DIAMETER OF HOLE THAT CAN BE GROUND..... 20"
MAX. GRINDING STROKE......................... 13"
GAP ADJUSTMENT (STD.)........................ 11-1/2" TO 20"
WORKHEAD CROSS SLIDE TRAVEL:
FRONT........................................ 6"
REAR......................................... 6"
DIAMETER OF WORKHEAD SPINDLE FLANGE.......... 12"
HOLE THROUGH WORKHEAD SPINDLE................ 1-11/16"
INFINITELY VARIABLE TABLE SPEED.............. 0 TO 18' FPM
WORKHEAD SPINDLE SPEEDS (4).................. 41, 62, 82 & 123 RPM
CROSS FEED DIAL GRADUATION REPRESENTS ON
DIAMETER OF WORK............................. 0.001"
POWER FEED ADJUSTMENT........................ 1 TO 6 TEETH
EACH RATCHET TOOTH W/COARSE GEARS (STD.)..... 0.0002"
EACH RATCHET TOOTH W/FINE GEARS (OPTIONAL)... 0.000138"
WORKHEAD MOTOR (FOUR SPEED).................. 5/2/1.5/1.0 H.P./1740/1140/870/580 RPM
WHEELHEAD MOTOR.............................. 7.5 HP

APPROX. DIMENSIONS........................... 137" x 72"W
APPROX. MACHINE WEIGHT........................ 16,700 LBS

EQUIPPED WITH:
HYDRAULIC TABLE MOVEMENT
AUTO PICKFEED FOR THE WHEELHEAD
48" SWING
36" FACE PLATE WITH (8) T-SLOTS
POWER MECHANISM FOR RAISING & LOWERING THE CHUCK GUARD
GAP ADJUSTMENT, 11- 1/2" TO 20"
COOLANT SYSTEM
WHEEL DRESSER
C-M HEALD "RED HEAD" I.D. SPINDLE, UNIT 413-157300, S/N: 122150, MAX. 6,500 RPM
WHEEL DRESSER
7.5 H.P. MOTOR FOR THE I.D. SPINDLE, 3/60/220-440 VOLTS
"FOUR SPEED MOTOR FOR THE WORKHEAD, DESCRIBED ABOVE, 3/60/440 VOLTS
HYDRAULIC SYSTEM LOCATED IN THE BACK OF THE MACHINE, 2 H.P. MOTOR
MACHINE IS WIRED PRESENTLY FOR 440 VOLTS

SPECIAL NOTE:
MACHINE HAS BEEN SERVICED, PLEASE SEE OUR VIDEO OF THE MACHINE UNDER POWER.

** INSPECT UNDER POWER IN NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
