DAEWOO PUMA 200LMSAمخارط CNC

بطاقة الهوية
451260
علامة تجارية
موديل
النوع
السنة
1999
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158159

الوصف

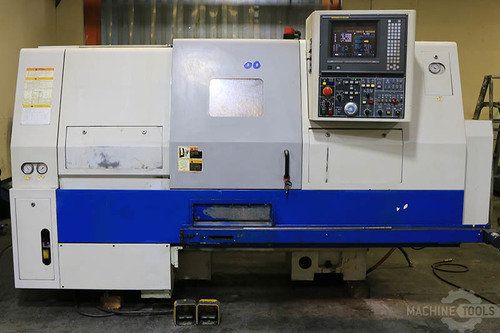

20.1" Swing 16.1" Centers Daewoo Puma 200LMSA CNC LATHE, Fanuc 18T, Live Tool, Subspindle

المواصفات

الأدوات الحية
Yes
الفرعية المغزل
Yes
CNC تحكم
CNC (FANUC 18T)

DAEWOO PUMA 200LMSA CNC TURNING/MILLING CENTER

NEW: 1999



VIDEO LINK: https://youtu.be/sXJ2qvHt2dg

SPECIFICATIONS:

Maximum Swing Over Bed                       20.1"

Swing Over Saddle                            13"

Maximum Machining Diameter                   11.8"

Maximum Turning Length                       16.1"

X-Axis Travel                                8.66"

Z-Axis Travel                                22.83

C-Axis                                       360 Deg (0.001 Deg)

Spindle Nose                                 A2-5

Spindle Bore                                 2.09"

Bar Capacity                                 1.8"

Spindle Speed                                60 - 6,000 RPM

Main Spindle Motor                           15 HP

Sub Spindle Speed                            6,000 RPM

Subspindle Motor                             7.5 HP

Rotary Tool Speed                            6,000 RPM

Rotary Tool Motor                            5 HP

Turret Type                                  12 Station VDI

Rapid Traverse Rates X / Z                   787 IPM/984 IPM

Approx. Machine Weight                       8,850 lbs.



Equipped with

Fanuc 18T CNC Control

Tool Presetter

Collet Chuck- Main Spdl

Collet Chuck - Sub Spdl

Subspindle

Full C Axis Spindle Rotation

Live Millng / Drilling Capable

Parts Catcher

Chip Conveyor

Barfeed Interface ONLY

All Available Tooling

(2) Live Holders

All Available Manuals

Wired 200/220V Electrics



FOR MORE INFORMATION: Call Mike at 973-497-7540
