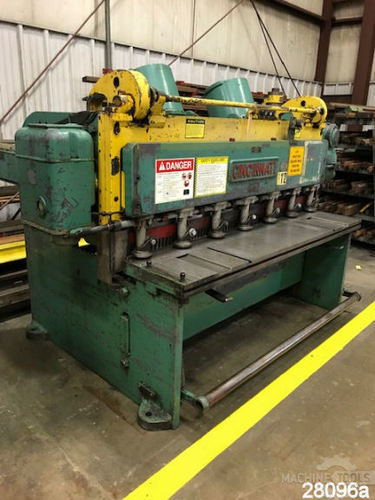

6 FT. X 1/4" CINCINNATI METAL SHEAR
Model no. 1406
Capacity: 6' x 1/4" mild steel
Length of knives: 6'4"
Distance between housings: 6'3"
Gap: 18"
Rake angle: 5/16"
Holddowns: 7
Holddown to knife edge: 5/8"
Distance under holddowns: 1/2"
Floor to top of bed: 32"
S.P.M. approx.: 60
EQUIPPED WITH: 24" front operated power back gauge with pushbuttons
for forward fast - slow - backward fast & readout
5'8" squaring arm
(1) stock support arm
Full length foot treadle
Pushbuttons for start - stop
Automatic oil lubrication
Vertical ram adjustment for square shearing, notching
or slitting
Spring counterbalances
(2) dovetail slots in top of bed
Dovetail slot in front of bed
Approx. 1/2 HP back gauge motor
5 HP 1725 RPM 220/440/3/60 motor
Weight approx. 12,000 lbs.
Overall dimensions approx. 110" L-R x 65" F-B x 73" H
Serial no. 18271
Stock no. 28096
FOB ELK GROVE VILLAGE, IL
