GENERAL SPECIFICATIONS

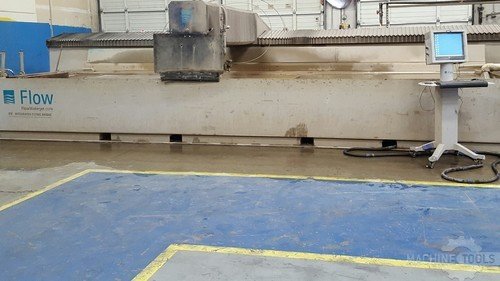

Model: 714000-1 (IFB 624)
2 Intensifiers: 100HP, 60,000 Psi
Bulk Abrasive Hopper: 2000 Lbs
Cutting Heads: Flow Paser (Dual Cutting Heads)
Maximum Cut Capacity: 6' X 24'
X-Axis Travel: 315”
Y-Axis Travel: 78.75”
Z-Axis Travel: 8”
Max Traverse Speed: 500 IPM
Max Contour Speed: 300 IPM

INCLUDES: Flow PC Based CNC Controller Running Flow Path 7 and Flow Cut 7, Dual Abrasive Cutting Heads, 2,000LB Abrasive Hopper, 100 HP 60KPSI Dual Intensifier Pump with 9000 Hours since Complete Rebuild and Closed Loop Chiller
