JONES & LAMSON EMPIC 130مناقل

صور ( 10 ) / فيديو

الثمن
علامة تجارية
موديل
بطاقة الهوية
454008
النوع
حالة
تستخدم - ممتاز
السنة
1973
رقم المسلسل
E-42615
الموقع
California
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
2234
بطاقة الهوية
454008
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
1973
رقم المسلسل
E-42615
الموقع
California
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
2234
الثمن

الوصف

J&L JONES & LAMSON 30" Optical Comparator w/ Upgraded Illumination System & DRO, super crisp & clear image.

المواصفات

تحويل المواصفات للمتري
ضياء. من الشاشة
30 "
الوزن
4200 lbs

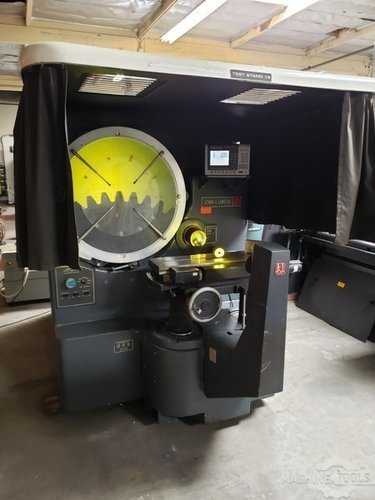

Jones & Lamson 30" Optical Comparator

Description:
In absolute excellent condition both working & cosmetically.
Super crisp & clear image due to the brand new upgraded Halogen lighting retrofit system we installed on the machine!
No more expensive, hard to find mercury bulbs. The system comes backed with a lifetime supply of bulbs as well!
The power travels on the table run super smooth as does the lens changer.
This machine comes fitted with a Quadra-Chek 200 Digital Readout system as well.

Everything on this machine is in 100% working condition and comes loaded with features.
Original Paint!
Rohner Machinery does not broker equipment. Everything we have advertised for sale on our website, or elsewhere is owned by RMS & is located on our warehouse floor here in Fullerton, CA. All machines are inspected & tested by our service techs to insure that all features & functions are in working condition. All equipment can be inspected under power on our warehouse floor and also come backed with our standard 30-day return policy.

Manufacturer: Jones & Lamson
Model: Epic-30
S/N: E-42615
Year: 1973

Specifications:
Machine weight 4,200 lbs
Screen diameter 30"
Table size 6"x30"
Work table travel ,horizontal power operated 8" w/electr.dig.displ.0.00005"
Work table travel , vertical power operated 6" w/electr.dig.displ.0.00005"
Focus 1.5"
Helix rotation 10 degrees right and left
Min./max. distance lens centerline to table: 2-1/4" / 8-1/4"
Angle measuring 360 degrees chart rotation
one minute vernier

Equipped With:
New Halogen Illumination Retrofit Kit with lifetime bulb supply.
Six Position Power Lens Selector
Power Longitudinal Table Travel
Power Elevation
Adjustable telecentric stop
20X, 50X Lenses
Surface Illumination
Quadra-Check Two-Axis Digital Readout System
Light Visor w/Curtains
110V, single phase power input
