HAAS TM-1مراكز التجهيز العمودي

صور ( 6 )

الثمن
علامة تجارية
موديل
بطاقة الهوية
454127
السنة
2003
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
6054

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على HAAS TM-1 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
454127
علامة تجارية
موديل
السنة
2003
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
6054
الثمن

الوصف

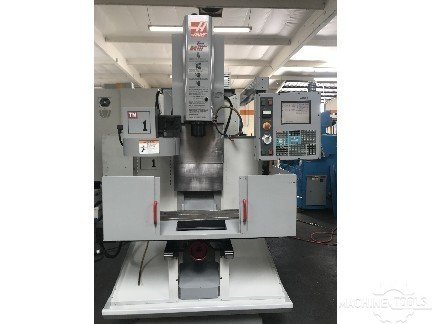

Haas TM1 Tool Room Mill 2003 with: Haas Control, 10-Station Tool Changer, and Coolant Tank.

المواصفات

تحويل المواصفات للمتري
X
30 "
Y
12 "
Z
16 "
القدرة
7.5 hp
RPM
4000 rpm
# ATC
10
الجدول-W
10.5 "
الجدول-L
47.75 "
أكسات
3
الأبعاد
100" x 78" x 99"
الوزن
4500 lbs.
CNC تحكم
CNC (Haas)

HAAS TM1 Tool Room Mill 2003 Haas Control 30"x12"x16" Travels 4000 RPM Spindle 10-ATC Coolant Tank
Category: Machining Centers Sub Category: Vertical Machining Centers
Stock No. 6054 Age: 2003 Serial #: 33435 Location: Fullerton, CA.

X-Axis Travels 30"
Y-Axis Travels 12"
Z-Axis Travels 16"
Min. Spindle Nose-Table 4"
Max. Spindle Nose-Table 20"
Table (Length x Width) 47.8" x 10.5"
Max Weight on Table 1000 lbs.
T-Slot Width 0.625"
T-Slots Center Distance 4.00"
Number of T-Slots 3
Spindle Max Speed 4000 rpm
Motor 7.5 HP
Drive System Direct Speed Belt Drive
Tool Changer 10 Station
Max. Tool Diameter 3.5"
Max. Tool Weight 12 lb
Approx. Dimensions 100" x 78" x 99"
Approx. Weight 4500 lbs.

Equipped With:
Haas CNC Control, 10-Station Tool Changer, and Coolant Tank.

Price ……………………………………………… $17,500.00

PLEASE SEE TERMS AND CONDITIONS BELOW
TERMS AND CONDITIONS OF SALES
Unless otherwise arranged, 10% cash (non-refundable) with order, balance prior to shipment of machine. Title does not pass until machine has been paid for in full. There are no warranties by ACT Machinery as to compliance with any requirements of Federal, State and Local laws and industrial codes, including, without limitation, the Occupational Safety and Health Act of 1970 and all amendments thereto. It is the buyer’s duty to inspect all machinery, to provide proper safety devices and equipment or means that may be necessary to safeguard the operator from harm and to safeguard each machine and equipment to meet all government standards, including the Occupational Safety and Health Act of 1970. Specifications are approximate, not binding and meant as a guide only. We reserve the right to correct typographical errors. It is the purchaser’s responsibility to verify specifications and dimensions. All machines offered subject to prior sale and for acceptance within ten days from date of quotation. Prices subject to change without notice. Orders are not subject to cancellation except by written mutual consent. All equipment sold “AS IS” with no guarantees expressed or implied. It is further understood and agreed this buyer or subsequent buyers will hold vendor harmless for causes of action whatsoever. This agreement constitutes the entire contract of sale of the goods named herein. No modification of this contract shall be binding upon Seller unless in writing and signed by an authorized officer of Seller.
