UNI-HYDRO 66-24شغل حديد

بطاقة الهوية
455901
علامة تجارية
موديل
النوع
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
158594
الثمن

الوصف

66 Ton 9" Throat Unihydro 66-24 IRONWORKER

المواصفات

تحويل المواصفات للمتري
زاوية (L1)
6 "
زاوية (L2)
5 "
حمولة
66 T
القدرة
7.5 hp
الزور
9 "

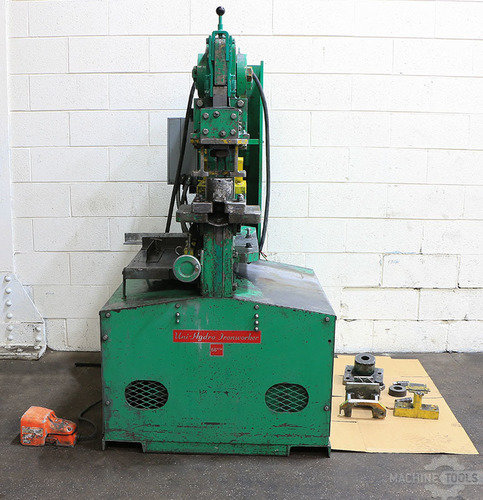

66 TON UNI-HYDRO HYDRAULIC IRONWORKER

MODEL 66-24          S/N 1P66682X



Capacity ......................... 66 Ton

Throat Depth ..................... 9"

Punching Capacity ................ 1-5/8 in 1/2"

                  ................ 2-1/4 hole in 3/8"



Bar Shear ........................ 1/4" x 24"

          ........................ 3/8" x 22"

          ........................ 1/2" x 16"

          ........................ 3/4" x 10"

          ........................ 1" x 6"



Angle Shear 90°

Slug Type ........................ 6" x 6" x 3/8"

          ........................ 5" x 5" x 1/2"

Sever Cut ........................ 4" x 4" x 3/8"



Miter Angle 45°

Bar Shear ........................ 4" x 4" x 1/2"

Slug Type ........................ 4" x 4" x 3/8"

Channel Shear .................... 2" & 3" Combined

              .................... 4" or 5" Standard



Rod Shear

Round (max.) ..................... 1-1/4"

Square (max.) .................... 1-1/4"

Coper Notcher 90° ................ 4" x 4" x 3/8" Angle

Square Notcher ................... 3" x 3" x 3/8"

Pipe Notcher (sch 40 or 80) ...... 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Brake ............................ 6", 9", 14", 18", 24"



Stroke per minute

Light material ................... 50

Maximium Capacity ................ 9



Hydraulics ....................... 2000 PSI

Oil Capacity ..................... 16 Quarts

Dimensions ....................... 37" W x 46" L x 70" H

Bar Shear Working Height ......... 29"

Punch Table Top Height ........... 29"

Weight ........................... 2840 lbs.



Equipped With:

- Foot Pedal

- Additional tooling as shown

FOR MORE INFORMATION: Call Rick at 973-497-7560
