HULLER HILLE NBH 170مراكز المعالجة الأفقي

بطاقة الهوية
455926
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2004
الموقع
Bayern
المانيا
عودة السياسة
كما هو
رقم المخزن
1576

الوصف

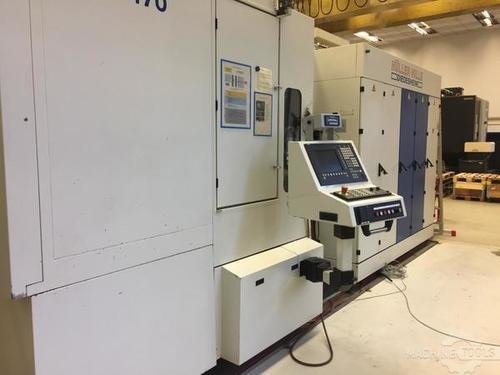

The horizontal machining center (BAZ) Hüller Hille nbh-170 speed is equipped with a Siemens SINUMERIK 840D control. This BAZ with increased rapid traverse speed has a double pallet changer in pallet size of 500x630mm and a full NC rotary table with pitch 360 x 0.001°. The main spindle in size HSK100 with internal coolant supply and drive power 50kW as well as the large tool magazine with 150 places complete the performance package of this machining centre of the German manufacturer Hüller-Hille. Technical Data: NC – rotary table Pallet size 630 x 500 mm 2-fold pallet changer Smallest partial step 0,001 ° Maximum workpiece circuit Ø 900 x 1.100 mm Max. table load centric 800 kg Max. feed rate 30 Upm travels X-axis (rotary table cross) 1.000 mm Y-axis (head stock vertical) 800 mm Z-axis (column longitudinal) 800 mm B-axis (NC – rotary table) 360.000 ° Feeds Feed range in X-Y-Z-axis 1 – 50.000 mm/min Feed force in X-Y-Z-axis 100% ED 15.000 N rapid feed in X-Y-Z-axis 50 m/min rapid feed B-axis (NC – rotary table) 30 m/min Tool magazine, Tool changer Number of magazine cassettes 3 Number of tool places each cassette 50 150 places in total Max. tool-Ø 100 mm Tool taper HSK 100 Tool-Ø with limitations 125/325 mm Tool length max. 650 mm Tool weight max. 40 kg Max. weight each magazine cassett 650 kg Tool changing time (max. 25 kg) ca. 2,5 – 4,5 sec Chip to chip time (VDI 2852, Bl. 1) ca. 7-8 sec Pallet change time ca. 12 - 18 sec Main spindle Max. power, ED 100/40% 36/50 kW Max. torque, ED 100/40% 344/475 Nm Max. speed 12.000 min-1 Tool taper HSK 100 Coolant equipment Tank capacity ca. 1.250 l External coolant ca. 30 l/min at 11 bar Internal coolant ca. 10 l/min at 25 + 50 bar Flushing pump device ca. 160 l/min at 1,0 bar Flushing pump channel flushing ca. 60 l/min at 1,7 bar Chip conveyor – ejection height 1.200 mm measurement Space requirement ca. 7,8 x 6,1 x 3,4 m Machine weight 27.000 kg equipment • 2-fold pallet changer with in total 4 piece pallets 630 x 500 mm (2 pallets extra) • Tool magazine with 150 places HSK 100 • NC-rotary table pitch 0,001° • Main spindle 12.000 min-1/36 kW • 3D-measuring probe RENISHAW OMP 60 • Machine cover with fully enclosed working area • 2 St. chip conveyors longitudinal • Coolant equipment with paper band filter, internal coolant • BRANKAMP tool monitoring • exhaust ELBARON • Power ON: 34.000 h, Machine run: 21.600 h

المواصفات

تحويل المواصفات للمتري
X
39.37 "
Y
31.5 "
Z
31.5 "
القدرة
67.1 hp
RPM
12 rpm
# ATC
150
عرض اللوح
24.8 "
طول اللوح
19.69 "
انحناء
HSK 100
الأبعاد
7,8 x 6,1 x 3,4 m
الوزن
27.000 kg
CNC تحكم
CNC (SINUMERIK 840 D)

NC – rotary table
Pallet size 630 x 500 mm 2-fold pallet changer
Smallest partial step 0,001 °
Maximum workpiece circuit Ø 900 x 1.100 mm
Max. table load centric 800 kg
Max. feed rate 30 Upm

travels
X-axis (rotary table cross) 1.000 mm
Y-axis (head stock vertical) 800 mm
Z-axis (column longitudinal) 800 mm
B-axis (NC – rotary table) 360.000 °

Feeds
Feed range in X-Y-Z-axis 1 – 50.000 mm/min
Feed force in X-Y-Z-axis 100% ED 15.000 N
rapid feed in X-Y-Z-axis 50 m/min
rapid feed B-axis (NC – rotary table) 30 m/min

Tool magazine, Tool changer
Number of magazine cassettes 3
Number of tool places each cassette 50 150 places in total
Max. tool-Ø 100 mm
Tool taper HSK 100
Tool-Ø with limitations 125/325 mm
Tool length max. 650 mm
Tool weight max. 40 kg
Max. weight each magazine cassett 650 kg
Tool changing time (max. 25 kg) ca. 2,5 – 4,5 sec
Chip to chip time (VDI 2852, Bl. 1) ca. 7-8 sec
Pallet change time ca. 12 - 18 sec

Main spindle
Max. power, ED 100/40% 36/50 kW
Max. torque, ED 100/40% 344/475 Nm
Max. speed 12.000 min-1
Tool taper HSK 100

Coolant equipment
Tank capacity ca. 1.250 l
External coolant ca. 30 l/min at 11 bar
Internal coolant ca. 10 l/min at 25 + 50 bar
Flushing pump device ca. 160 l/min at 1,0 bar
Flushing pump channel flushing ca. 60 l/min at 1,7 bar
Chip conveyor – ejection height 1.200 mm

measurement
Space requirement ca. 7,8 x 6,1 x 3,4 m
Machine weight 27.000 kg

equipment
• 2-fold pallet changer with in total 4 piece pallets 630 x 500 mm (2 pallets extra)
• Tool magazine with 150 places HSK 100
• NC-rotary table pitch 0,001°
• Main spindle 12.000 min-1/36 kW
• 3D-measuring probe RENISHAW OMP 60
• Machine cover with fully enclosed working area
• 2 St. chip conveyors longitudinal
• Coolant equipment with paper band filter, internal coolant
• BRANKAMP tool monitoring
• exhaust ELBARON
• Power ON: 34.000 h, Machine run: 21.600 h
