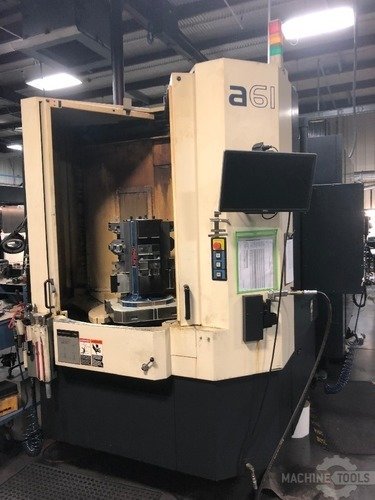

MAKINO A61مراكز المعالجة الأفقي

بطاقة الهوية
456079
علامة تجارية
موديل
السنة
2004
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3266
الثمن

الوصف

28.7” X 25.6” X 28.7” Horizontal Machining Center with Super GI.3 Control for Faster Processing, Full 4th Axis NC Rotary Table, 60 Tool ATC, Renishaw Probe, NC4 Tool Breakage Detection (Upgraded from NC1 Laser in 2015), JS Retention Stud, Pallet Changer w/ Safety Cover, Door Interlock, 300 PSI Thru Spindle Coolant, Coolant System w/ 26 Nozzles, Lift-up Chip Conveyor, Splash Guard, Transformer, Helical Interpolation, Tool Offset, and 32,452 Cutting Hours.

المواصفات

تحويل المواصفات للمتري
X
28.7 "
Y
25.6 "
Z
28.7 "
RPM
12000 rpm
# ATC
134
عرض اللوح
19.7 "
طول اللوح
19.7 "

GENERAL SPECIFICATIONS

Pallet Size: 19.7" x 19.7" Tapped
Travels:
X-Axis: 28.7"
Y-Axis: 25.6"
Z-Axis: 28.7"
Spindle Nose to Pallet Center: 2.76" - 31.5"
Spindle Center to Pallet: 3.15" - 28.74"
Number of Pallets: 2
Pallet Change Time: 8 Seconds
Max Payload: 500 kg
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP Continuous
Spindle Taper: CAT 40

INCLUDES: Super GI.3 Control for Faster Processing, Full 4th Axis NC Rotary Table, 60 Tool ATC, Renishaw Probe, NC4 Tool Breakage Detection (Upgraded from NC1 Laser in 2015), JS Retention Stud, Pallet Changer w/ Safety Cover, Door Interlock, 300 PSI Thru Spindle Coolant, Coolant System w/ 26 Nozzles, Lift-up Chip Conveyor, Splash Guard, Transformer, Helical Interpolation, Tool Offset, and 32,452 Cutting Hours.
