MAKINO A61مراكز المعالجة الأفقي

بطاقة الهوية
456080
علامة تجارية
موديل
السنة
2005
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3265
الثمن

الوصف

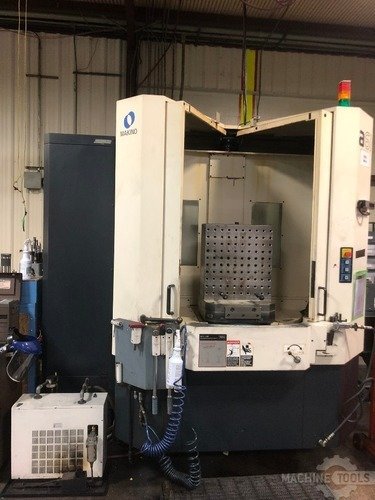

28.7” X 25.6” X 28.7” 4-Axis Horizontal Machining Center with Makino Professional 3 CNC Control, Full 4th Axis NC Rotary Table, 60 Position Tool Changer,  Probing, NC4 Tool Breakage Detection, High Pressure (300 PSI) Thru Spindle Coolant, Cabinet Washdown System w/ 26 Nozzles and Lift-Up Styler Chip Conveyor.

المواصفات

تحويل المواصفات للمتري
X
28.7 "
Y
25.6 "
Z
28.7 "
RPM
12000 rpm
# ATC
134
عرض اللوح
19.7 "
طول اللوح
19.7 "

GENERAL SPECIFICATIONS

Pallet Size: 19.7" x 19.7" Tapped
Travels:
X-Axis: 28.7"
Y-Axis: 25.6"
Z-Axis: 28.7"
Spindle Nose to Pallet Center: 2.76" - 31.5"
Spindle Center to Pallet: 3.15" - 28.74"
Number of Pallets: 2
Pallet Change Time: 8 Seconds
Max Payload: 500 kg
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP Continuous
Spindle Taper: CAT 40

INCLUDES: Makino Professional 3 CNC Control, Full 4th Axis NC Rotary Table, 60 Position Tool Changer, Probing, NC4 Tool Breakage Detection (2015 Upgrade), High Pressure (300 PSI) Thru Spindle Coolant, Cabinet Washdown System w/ 26 Nozzles, Lift-Up Styler Chip Conveyor, Transformer, Helical Interpolation, Tool Offset, and 32,452 Cutting Hours.
