TAKUMI V32مراكز التجهيز العمودي

بطاقة الهوية
456151
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2011
الموقع
فنلندا
رقم المخزن
FI-MIL-TAK-2011-00001

الوصف

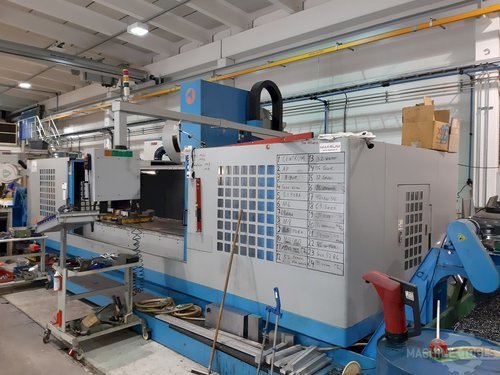

This Takumi V32 Vertical Machining Center was manufactured in the year 2011 in Taiwan. It has a production history of 8373 working hours. It is operated through a Fanuc Series Oi-MD control unit. It can work with a spindle speed up to 6000 rpm.

المواصفات

تحويل المواصفات للمتري
X
126 "
Y
40 "
Z
30 "
القدرة
35 hp
RPM
10000 rpm
# ATC
30
الجدول-W
40.35 "
الجدول-L
126 "
انحناء
50
أكسات
4

Takumi V32 Vertical Machining Center

Production Hours: 8373

General Data:
Measurements width: 9902 mm
Measurements depth: 4690 mm
Measurements height: 3510 mm
Machine weight: 27000 kg

Control Unit:
Brand: Fanuc
Model: Series Oi-MD
CNC main language: English

Main Drive:
Number of spindles: 1
Spindle speed range: 6000

Movement:
X-Axis Movement: 3200 mm
Y-Axis Movement: 1066 mm
Z-Axis Movement: 750 mm

Workpiece:
Workpiece weight: 4500 kg

Table:
Outer length: 3200 mm
Outer width: 1025 mm
Number of tslots: 22*150*7

Tools:
Slots in storage: 24
Max weight: 15 kg
Max tool diameter: 110/220 mm
Max tool length: 300 mm
Type of tool holder: BT50

Media:
Main electronic connection: 220 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* 4th axis PARKSON MNC-503
* 90 degree angular head
* Spindle speeder 1-6
