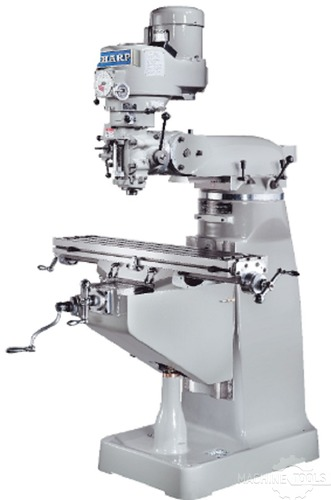

SHARP LMV-42Kمطاحن العمودي

بطاقة الهوية
456173
علامة تجارية
موديل
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3297
الثمن

الوصف

30” x 12” x 5” Manual Vertical Mill Package with 3-Axis Digital Readout (Quill, Saddle and Table), X-Axis Powerfeed, 3HP Motor, Variable Speed Drive (60-4500 RPM), R-8 Spindle, Dual Cooling Fans, Meehanite Casting, Chromed Ways, Self-Lubricating Motor Shaft Extends Pulley Life, Abec-7 Super Precision Spindle Bearings, One Shot Lube System, Front and Rear Rubber Way Covers.

المواصفات

تحويل المواصفات للمتري
الجدول-W
9 "
الجدول-L
42 "
مجال الحركة الطولية
30 "
مجال الحركة القطعية
12 "
القدرة
3 hp
RPM
4500 rpm
انحناء
R8

GENERAL SPECIFICATIONS

Working Surface: 9” x 42”
T-Slots Number and Size: 3 Slots 5/8”
Travels (X, Y, And Z): 30” x 12” x 5”
Ram Travel: 12”
Knee Travel: 16”
Spindle To Column (Min-Max): 6 3/4” - 18 1/2”
Spindle Nose To Table (Min-Max): 2 1/8”-18”
Spindle Motor: 3 HP
Spindle Nose Taper: R8
Spindle Variable Speed Drive: 60-4500 Rpm
Quill Feed 3 Speed (IPR): 0.0015, .003, .006”
Quill Diameter: 3-3/8”
Head Swivels: 360°
Head Tilt (Lt. To Rt): 45°
Head Tilt (Up And Down): 45°
Floor Area (W x D x H): 7’ x 6.5’ x 6.75’
Weight: 2,400 Lbs.
Voltage: 220V 3KVA/8 Amps, 440V 3KVA/4 Amps

INCLUDES: 3-Axis Digital Readout (Quill, Saddle and Table), X Axis Powerfeed, 3HP Motor, Variable Speed Drive (60-4500 RPM), R-8 Spindle, Dual Cooling Fans, Meehanite Casting, Chromed Ways, Self-Lubricating Motor Shaft Extends Pulley Life, Abec-7 Super Precision Spindle Bearings, One Shot Lube System, Front and Rear Rubber Way Covers.
Optional Accessories

6” “Kurt” Vise with Swivel Base D688 5000-2126 A: $1,130.00
Auto Lube Pump: $880.00
Right Angle Milling Attachment with Arbor ACC-10-NT30: $1,735.00
Right Angle Milling Attachment with Arbor ACC-10LMV-R8: $2,055.00
“Sharp” Power Table Feed with Safety Handle (X-Axis) * SP-250A: $880.00
“Sharp” Power Cross Feed with Safety Handle (Y-Axis) SP-250B: $880.00
“Sharp” Power Knee Feed with Safety Handle (Z-Axis) SP-250D: $880.00
Drill Chuck & Drill Arbor LMV-D/A: $510.00
6” Riser Block ACC-R6: $1,130.00
Coolant System with Chip Pan at Base (Pump Included) C311-LMV: $855.00
“Maxi Torque Rite” Power Draw Bar TR-100: $920.00
R-8 Collet (Set of 11) - 1/8”-3/4” BY 1/16” ACC-R8: $240.00
Clamping Kit (52 pcs/Steel Rack) CK-104: $235.00
Halogen Work Light WL-110V55W: $250.00
CE Mark Net: $1500.00
380V and 575 V Transformer 440T4: $785.00 Net
UL Components Upgrade with Electrical Box (Factory Order) LMV-UL: $3500.00
UL Compliance Certificate Under State of California Net: $4500.00

Optional Digital Readout Systems
Fagor Digital Readout

2-Axis X&Y (Fagor 20i) FG-LMV: $1,610.00
3-Axis X&Y on Quill (Z) (Fagor 30i) FG-LMV-3A: $2,415.00
3-Axis X&Y on Knee (Z) (Fagor 30i) FG-LMV-3AK: $2,520.00

Acu-Rite 200S Digital Readout

2-Axis X&Y AR-LMV: $2,185.00
3-Axis X&Y on Quill (Z) AR-LMV-3A: $2,665.00
3Axis X&Y on Knee (Z) AR-LMV-3AK: $2,780.00

Newall DP700 Digital Readout

2-Axis X&Y NWDP-LMV: $1,930.00
3-Axis X&Y on Quill (Z) NWDP-LMV-3A: $2,670.00
3-Axis X&Y on Knee (Z) NWDP-LMV-3AK: $2,670.00
