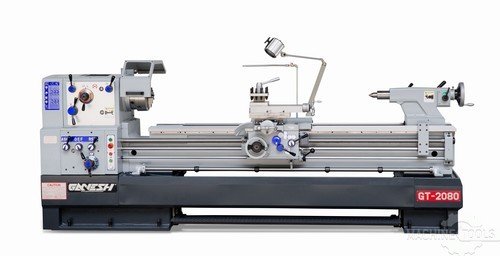

GANESH GT-2080مخارط المحرك

صور ( 1 )

الثمن
علامة تجارية
موديل
بطاقة الهوية
456187
حالة
الجديد في المخزن
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3278
بطاقة الهوية
456187
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2019
الموقع
الولايات المتحدة الامريكية
رقم المخزن
3278
الثمن

الوصف

20” x 26-3/8” Turning Capacity Long Bed Manual Engine Lathe with Heavy Duty Geared Head, Fagor DRO, Special Accessory Package Valued at $3,000 Includes a 6 Month Parts Warranty.

المواصفات

تحويل المواصفات للمتري
الأرجحة
20 "
المراكز
80 "
ثقب عامود الدوران
3.13 "
القدرة
10 hp
RPM
1550 rpm

GENERAL SPECIFICATIONS

Swing Over Bed: 20” 510mm
Center Height: 10” 255mm
Swing Over Cross Slide: 13” 330mm
Swing Thru Gap: 26-3/8” 680mm
Length of Gap in Front of D1-8 Faceplate: 7-1/16” 180mm
Bed Casting Width & Depth: 16-1/8” / 12-7/32” 400mm / 310mm
Spindle Motor Horsepower: 10-HP 3-Phase
Spindle Speeds: 12 Speeds, 20 - 1550 rpm (High & Low)
Spindle Bore: 3-1/8” 80mm
Spindle Nose: D1-8
Cam Lock Spindle Taper in Spindle Nose: MT-7 Morse Taper # 7
Spindle Taper Reduction Sleeve Provided: MT-7 to MT-5
Carriage Cross Slide Travel: 12-1/2” 320mm
Cross Slide Width: 7-3/32” 180mm
Cross Slide Lead Screw Pitch: .200”/rev.
Cross Slide Resolution Per Division: 0.001” (on Diameters)
Carriage Lead Screw Diameter: 1-1/2” 38mm
Carriage Lead Screw Pitch: 4 TPI 6mm pitch
Feed Rod Dimensions: 7/8” Hexagon 23mm Hexagon
Compound Top Slide Travel: 10” 255mm
Compound Top Slide Width: 4-11/32” 110mm
Cutting Tool Height Maximum: 1.0” x 1.0” 25mm x 25mm
Quill Diameter: 2-15/16” 75mm
Quill Stroke: 6-5/16” 160mm
Tailstock Body Set-Over Adjustment: ± ½” ± 13mm
Thread Cutting Range: 60 Inch Pitches 2, 112 TPI
Thread Cutting Range: 60 Metric Pitches 0.2, 14mm
Thread Cutting Range: 50 Diametral Pitches 4, 112 D.P.
Thread Cutting Range: 50 Module Pitches 0.2, 7 M.P.
Thread Cutting Lead Screw Diameter: Pitch 1-1/2”, 4 TPI 38mm, 6mm Pitch
Quill Taper MT-5 Morse Taper # 5: Quill Tang Drive and Drift-Slot for Tailstock Included
Feeds - Longitudinal: 50 Feeds 0.0014”, 0.0387”/rev. 0.037, 1.04mm/rev.
Feeds - Cross: 50 Feeds 0.0007”, 0.01935”/rev. 0.0185, 0.52mm/rev.
Coolant Pump 1/8-HP Machine Power Requirements (440vac Optional): 220vac, 3-Phase,

INCLUDES: Solid, Heavy Duty Geared Head, with Special Package Valued at $3,000 Plus a Fagor DRO, Includes a 6 Month Parts Warranty.
Special Package Includes:

10” 3-jaw scroll chuck
12” 4-jaw independent chuck
Steady Rest Capacity:
3”- 8” (Roller Bearings are Optional)
Follower Rest
Full-Length Back Splash Guard
Chuck Guard w/ Safety Interlock
Foot brake
4-Way Tool Post w/wrench
Machine Leveling Pads
Halogen Work Light (55 Watts)
Fagor DRO.*Valued at $3,000 USD*
