EWAG EWAMATIC LINEARأداة وكتر المطاحن
Note : Join Business Delegation from India to EMO 2019 (Hanover, Germany) from Sept 16-21
AVAILABLE DIRECTLY FROM EUROPE!

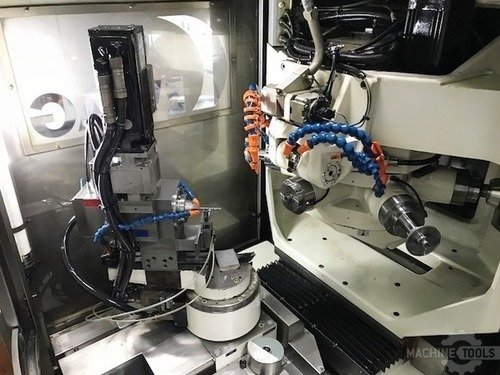

6 Axis CNC Tool Grinding Machine
With Erosion Functionality
Model: Ewamatic Line
CNC : NUM 1050 Control
Suitable for production and regrinding of inserts and rotational symmetrical tools made from HSS, TCT, Cermet, Ceramic, CBN and PCD.
1) Machine delivered in a fully working condition
2) Machine supplied with tool kit and manual.
3) Machine can be demonstrated under power
Cross axis X 360 mm, height adjustment axis Y 240 mm, infeed axis Z 240 mm, fast traverse X, Y, Z 10 m / min, pivot axis B +/- 120°, max tilt of grinding spindle -15° to +25°, workpiece mount HSK 63, workpiece diameter from 0,2 - 200 mm, inserts from diameter 3 mm inner circle to 50 mm outer circle, grinding spindle power rating 7,5 kW, grinding spindle speeds 200 - 6000 rpm // 1000 - 12000 rpm, grinding wheel diameter max. 300 mm, connected load 400 V / 50 Hz / approx. 16 kVA, dimensions w x d x h approx. 2712 x 2750 x 2250 mm, colour stainless steel.
Accessories (to be confirmed before purchase):
Grinding head tiltable with 6 spindle ends,
Linear axis X, Y and Z with glass measuring scales,
Indexing head TA60, with automatic clamping for SK 40
Clamping table complete,
Pressure control for PCD grinding,
Integrated dressing and regeneration systems,
Acoustic monitoring system option "touch",
Coolant system 350 l,
Automatic central lubrication,
Automatic steady rest,
Automatic fire extinguishing system,
4 grinding wheel mounts,
1 erosion wheel mount,
Various collets W25,
NUMROTOplus - standard endmills,
NUMROTOplus - complex endmills,
NUMROTOplus - standard drills / step drills,
NUMROTOplus - complex drills / step drills,
NUMROTOplus - form cutters,
NUMROTO-3D - Collision monitoring,
NUMROTO-3D - workpiece simulation,
Hard lock for additional programming station.
Please contact for complete details
