AXA VSC 3مراكز التجهيز العمودي

بطاقة الهوية
456291
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1992
الموقع
النمسا
رقم المخزن
AT-MIL-AXA-1992-00001

الوصف

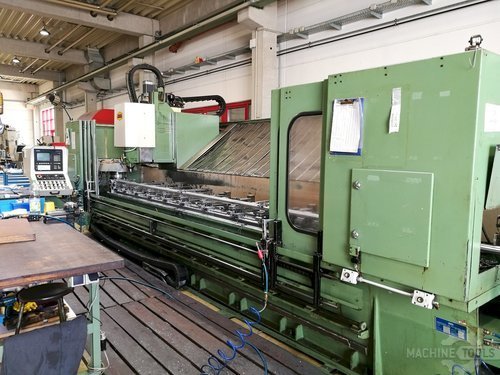

This AXA VSC 3 Vertical Machining Center was made in 1992 in Germany and has been on for 30753 hours. Equipped with a SMENES 810 D Control unit, this machine has a spindle speed range of 60 to 6000 rpm. It presents perfectly good conditions, as it has been regularly serviced.

المواصفات

تحويل المواصفات للمتري
X
182.5 "
Y
27.56 "
Z
18.9 "
RPM
6000 rpm
الجدول-W
15.75 "
الجدول-L
157.5 "

AXA VSC 3 Vertical Machining Center

Production Hours: 30753

General Data:
Measurements width: 7200 mm
Measurements depth: 3400 mm
Measurements height: 3100 mm
Machine weight: 18000 kg

Control Unit:
Brand: SIEMENS
Model: 810D
CNC main language: German
CNC language customizable: Yes

Main Drive:
Number of spindles: 1
Spindle speed range: 60-6000

Movement:
X-Axis Movement: 4635 mm
Y-Axis Movement: 700 mm
Z-Axis Movement: 480 mm

Table:
Outer length: 4000 mm
Outer width: 400 mm

Tools:
Slots in storage: 2 times 22
Type of tool holder: SK40 DIN69871

Media:
Main electronic connection: 3x380 V
Power consumption: 28 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* B axes - round table (adjustable)- upon request
