CINCINNATI INC 135PF-10الصحافة الفرامل

صور ( 10 )

علامة تجارية
موديل
بطاقة الهوية
457157
السنة
2015
الموقع
الولايات المتحدة الامريكية
رقم المخزن
10609

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على CINCINNATI INC 135PF-10 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
457157
علامة تجارية
موديل
السنة
2015
الموقع
الولايات المتحدة الامريكية
رقم المخزن
10609

الوصف

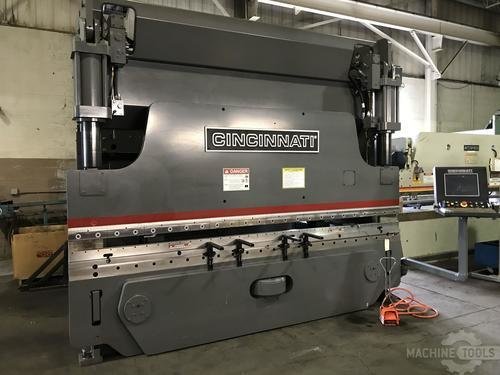

USED CINCINNATI 135 TON X 12' “PROFORM SERIES” CNC HYDRAULIC PRESS BRAKE, 135PF+10, 2015, Stock No. 10609

المواصفات

تحويل المواصفات للمتري
حمولة
135 T
نوع
HYD
طول كلى
12 '
بين مساكن
126 "
المشوار
14 "
أكسات
5
CNC تحكم
CNC (Cincinnati)

Specifications:
Tonnage: 135 Tons
Overall length bed/ram: 12'
Distance between housings: 126"
Ram feedback type: Linear scale
Ram depth stop: CNC controlled
Upacting or downacting: Downacting
Ram tilt adjustment: Programmable
Backgauge range: 24"
Number of gauging axis's: 5
Backgauge speed: 1,200 IPM
R-axis travel: 8.5"
Number of backgauge fingers: 2
Stroke: 14" (increased from the standard 8" stroke)
Throat depth: 8"
Clamp style: American
Crowning type: CNC in bed
Open height: 21"
Closed height: 7"
Number of cylinders: 2
Advance speed: 200 IPM variable
Pressing speed: 55 IPM variable
Return speed: 185 IPM
Die holder type: Single groove
Bed height: 34"
Bed cap width: 4.5"
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 152" x 60" x 133"
Weight: 22,000 Lbs.

Equipped with:
Cincinnati Windows based 3-D color graphical touch screen CNC control W/palm buttons, auto gauge retract, USB drive
Bend simulation software
Unfolder module
Programmable Z axis (fingers left to right)
6" increased stroke 14" total
Steel rear guarding on back of machine
Graphical tool library and part views
Cincinnati auto crown CNC bed crowning
Full length T-slot in front and back of bed
Portable foot pedal

The Proform+ has dual pressure transducers on its hydraulic cylinders for increased tonnage accuracy, and digital encoders to deliver ±0.0004” (0.01 mm) ram repeatability for close-tolerance forming and higher part quality.

The Proform+ includes numerous premium-engineering features that ensure reliable, long-lived operation. Clevis-mounted cylinders and centerline loading confine operating stress to the main housing, eliminating cylinder misalignment. The Machine’s Variable Volume Load Sensing (VVLS) hydraulic system lowers maintenance costs and increases energy efficiency. Hydraulic cylinders use hardened piston rods with precision guiding to minimize oil leaks, and the machine’s heavy plate frame is precision machined and rigidly interlocked – not welded – to better resist deflection for years of precision forming at maximum loading.
The Proform+'s powerful, PC-based control combines 3D graphics interface with simple touch-screen operation to speed setup and programming times, as well as optimize throughput. New part programs can be generated through manual data entry or by drawing the part in cross-section or flat pattern, and then selecting tooling and bend sequence. A special job setup page displays tool segment lengths and tool locations, as well as notes to improve part consistency.
The Proform+ is also available with CINCINNATI’s Auto Crown, an automatic, hydraulically-powered crowning device that can produce angles within ±1/2° variation along the bend line.
