CHARMILLES ROBOFIL 2020-1سلك التنظيم الإداري

بطاقة الهوية
458021
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1995
الموقع
أبرلندا
رقم المخزن
IE-EDM-CHA-1995-00003

الوصف

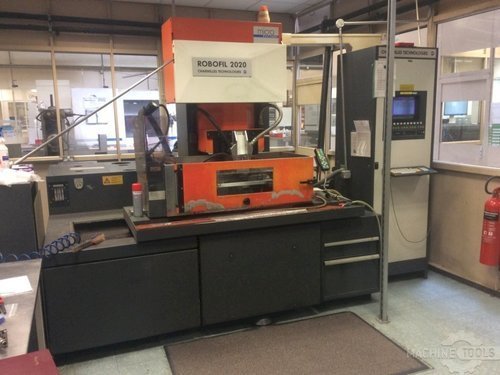

This CHARMILLES Robofil 2020 - 1 Erosion Machine was made in 1995 in Switzerland. It has been working for approximately 48000 hours. It is equipped with a control unit of the same brand. This machine can work with a wire diameter of 0.1 to 0.3 mm.

المواصفات

تحويل المواصفات للمتري
حركة الأكس X
12.6 "
حركة الأكس Y
8.661 "
حركة الأكس Z
4.567 "

CHARMILLES Robofil 2020 - 1 Erosion Machine

Production Hours: 48000

General Data:
Measurements width: 2500 mm
Measurements depth: 2500 mm
Measurements height: 2290 mm
Machine weight: 2200 kg

Control Unit:
Brand: Charmilles
Model: Charmilles CNC

Main Drive:
Wire diameter: 0.1 to 0.3 mm

Movement:
X-Axis Movement: 320 mm
Y-Axis Movement: 220 mm
Z-Axis Movement: 116 mm

Workpiece:
Workpiece X: 990 mm
Workpiece Y: 505 mm
Workpiece Z: 150 mm
Workpiece weight: 500 kg

Table:
Outer length: 600 mm
Outer width: 420 mm

Media:
Main electronic connection: 400 V
Power consumption: 12 kVA

Additional Equipment:
* Auto Wire Feed
* Dielectric Filtration and Tank
* 900L Di-Elecetric Tank
