EMTخطوط مواسير

صور ( 5 )

علامة تجارية
بطاقة الهوية
458126
حالة
مستعملة - جيد
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
19538
بطاقة الهوية
458126
علامة تجارية
حالة
مستعملة - جيد
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
19538

الوصف

Tube Diameter: 42mm - 130mm Wall Thickness: 1.5mm - 5mm Pipe Length: 4m - 8m Speed: 25 - 45 meters per minute Direction: Left to Right Double Mandrel Uncoiler Coil Weight: 4,000kg Coil ID: 500mm - 610mm Coil OD: 800mm - 1800mm Strip Width: 140mm Powered Mandrel Expansion Powered Rotation Automatic Shear & End Welder Hydraulic Shear Automated Torching Head Horizontal Accumulator DC Motor Drive Driven Entry & Exit Guiding Rolls Driven Entry Pinch Rolls Adjustable Edge Guides Coil Straightening Unit Forming Mill Driven Forming Stands Driven Side Stands Individual Gear Boxes Universal Drive Complete Set of Second Rafted Forming Stands DC Motor Drive Welding Section 350Kw High Frequency Welder 3-Roll Mechanical Squeeze Box ID Scarfing Head Powered Bead Re-Winder Extended Cooling Section Sizing Mill Driven Sizing Stands Driven Side Stands Driven Adjustable Turk-Heads Individual Gear Boxes Universal Drive DC Motor Drive Cold Cut-Off Saw Digital Length Control System Traverse AC Drive Hydraulic Saw Drive Driven Run-Out Table End Discharge Table Complete Tube Mill with Electrics, Hydraulics, Controls, Tooling

المواصفات

تحويل المواصفات للمتري
قطر الماسورة
5.118 "
أقصى سمك للحائط
0.1969 "

130mm x 5mm EMT Tube Mill with 350Kw HF Welder

Tube Diameter: 42mm - 130mm
Wall Thickness: 1.5mm - 5mm
Pipe Length: 4m - 8m
Speed: 25 - 45 meters per minute
Direction: Left to Right

Double Mandrel Uncoiler
Coil Weight: 4,000kg
Coil ID: 500mm - 610mm
Coil OD: 800mm - 1800mm
Strip Width: 140mm
Powered Mandrel Expansion
Powered Rotation

Automatic Shear & End Welder
Hydraulic Shear
Automated Torching Head

Horizontal Accumulator
DC Motor Drive
Driven Entry & Exit Guiding Rolls

Driven Entry Pinch Rolls
Adjustable Edge Guides
Coil Straightening Unit

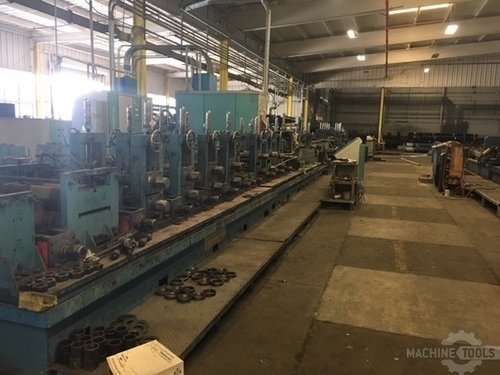

Forming Mill
Driven Forming Stands
Driven Side Stands
Individual Gear Boxes
Universal Drive
DC Motor Drive

Welding Section
350Kw High Frequency Welder
3-Roll Mechanical Squeeze Box
ID Scarfing Head
Powered Bead Re-Winder
Extended Cooling Section

Sizing Mill
Driven Sizing Stands
Driven Side Stands
Driven Adjustable Turk-Heads
Individual Gear Boxes
Universal Drive
DC Motor Drive

Cold Cut-Off Saw
Digital Length Control System
Traverse AC Drive
Hydraulic Saw Drive

Driven Run-Out Table
End Discharge Table

Complete Tube Mill with Electrics, Hydraulics, Controls, Tooling
