TINIUS OLSEN SUPER Lالشد والضغط اختبار

بطاقة الهوية
458185
علامة تجارية
موديل
الموقع
Florida
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
GMT-2009
الثمن

المواصفات

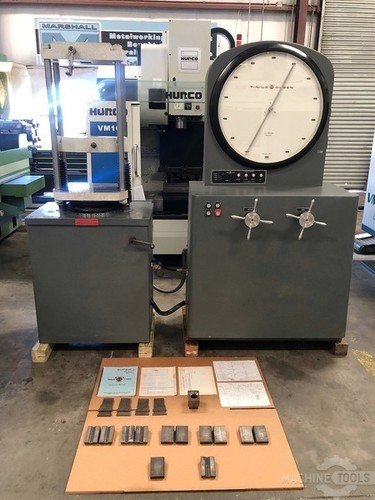

TINIUS OLSEN “Super L UTM” 60,000 Lbs. Tensile Compression Tester #GMT-2009

Specifications
Reference #: GMT-2009
Model # : “Super L” U.T.M.
Serial # : 148050
Maximum capacity: 60,000 Lbs.
Range capacities: 1-1,200 Lbs. / 5-6,000 Lbs. / 20-24,000 Lbs. / 50-60,000 Lbs.
Rack & pinion stroke (Tension): 24"
Rack & pinion stroke (compression): 22"
Max material width: 2"
Max material diameter: 1-1/4”
Max material thickness: 1"
Stroke: 6"
Clearance between screws: 14"
Testing speeds: 0-3” I.P.M.
Adjustable crosshead speed: 20”

Equipped with
***Machine came out of Technical School Laboratory***
(4) Pairs of shims
(12) Wedge grips
1.5 H.P Hydraulic motor & tank
Machine manuals & Schematic prints
Machine is currently wired for 230 volt / 3 phase / 60 H.Z.

Approximate weight
3500 Lbs.

Approximate dimensions:
75’’ L x 25’’ W x 85’’ H

Location:
F.O.B. Bradenton, Florida
