SUPERMAX YCM-2VASمطاحن العمودي

صور ( 10 ) / فيديو

الثمن
علامة تجارية
موديل
بطاقة الهوية
458353
حالة
تستخدم - ممتاز
السنة
1991
رقم المسلسل
0123106
الموقع
California
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
2304
بطاقة الهوية
458353
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
1991
رقم المسلسل
0123106
الموقع
California
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
2304
الثمن

الوصف

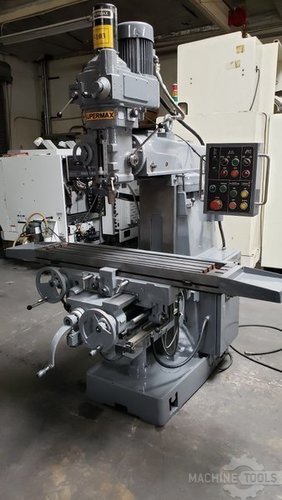

SUPERMAX YCM-2VAS Heavy-Duty Box Way Vertical Milling Machine w/ DRO. NICE! Loaded with features.

المواصفات

تحويل المواصفات للمتري
الجدول-W
11 "
الجدول-L
52 "
مجال الحركة الطولية
40 "
مجال الحركة القطعية
16 "
القدرة
5 hp
RPM
3800 rpm
الوزن
5.000 lbs

SuperMax Heavy-Duty Vertical Milling Machine

Description:
In absolute excellent condition both working & cosmetically.
Super Heavy-Duty Box way machine with a 40-taper spindle. They don't make them like this anymore!
Fully gear driven power feed & rapid in all axes. Spindle sounds super smooth & the ways look amazing on this machine.
Comes fitted with a Mitutoyo 2-Axis digital readout system, power drawbar, pendant control & much more!
You can take some heavy cuts on this bad boy!

Everything on this machine is in 100% working condition and comes loaded with features.
This machine was professionally re-painted with a special 2-part polyurethane paint that will last.
This is no slouch paint job.
Rohner Machinery does not broker equipment. Everything we have advertised for sale on our website, or elsewhere is owned by RMS & is located on our warehouse floor here in Fullerton, CA. All machines are inspected & tested by our service techs to insure that all features & functions are in working condition. All equipment can be inspected under power on our warehouse floor and also come backed with our standard 30-day return policy.

Manufacturer: Supermax
Model: YCM-2VAS
S/N: 0123106
Year: 1991

Specifications:
Table working surface 11" x 52"
No. of T-Slots 3"
X-axis travel 40"
Y-axis travel 16"
Z-axis travel 18"
Quill travel 5.5"
(12) Longitudinal & Cross feeds 5/8 to 28.75 ipm
Rapid traverse rate 118 ipm
Table to spindle nose distance 0-22.75"
Ram Travel 21.25"
Turret rotation 360 deg
Head tilt (left/right) 90 deg
Quill Dia 4-3/8"
(3) Power Quill Feeds .0015, .003, .005 ipr
Spindle speeds 85-3800 rpm
Spindle Motor 5 HP
Spindle Taper 40 NST
Feed Motor 2HP
Machine weight 5,000 lbs

Equipped With:
Mitutoyo 2-Axes DRO System
Variable Speed Spindle Drive
Box Ways on Y & Z
Power Drawbar
Central Auto Lube System
Coolant System
Gear Driven Power Feeds in All Axes
Rapid Traverse in All Feeds
Power Quill Downfeed
Pendant Control
