DECKEL MAHO DMC 635Vمراكز التجهيز العمودي

بطاقة الهوية
458365
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2012
الموقع
المجر
رقم المخزن
HU-MIL-DEC-2012-00001

الوصف

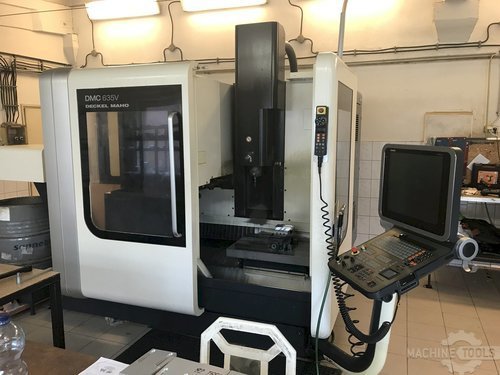

This DECKEL MAHO DMC 635V Vertical Machining Center was made in the year 2012 in Germany. It has been working for only 7734 hours. It is operated through a DMG Heidenhain iTNC 530 control unit. This machine can work with a spindle speed range up to 18000 rpm. It includes an internal cooling and a chip conveyor.

المواصفات

تحويل المواصفات للمتري
X
25 "
Y
20.1 "
Z
18.1 "
القدرة
17.4 hp
RPM
10000 rpm
# ATC
20
الجدول-W
22 "
الجدول-L
31.1 "

DECKEL MAHO DMC 635V Vertical Machining Center

Production Hours: 7734

General Data:
Measurements width: 3640 mm
Measurements depth: 3480 mm
Measurements height: 2665 mm
Machine weight: 4000 kg

Control Unit:
Brand: DMG
Model: Heidenhain iTNC 530

Main Drive:
Number of spindles: 1
Spindle speed range: 18000

Movement:
X-Axis Movement: 635 mm
Y-Axis Movement: 510 mm
Z-Axis Movement: 460 mm

Workpiece:
Workpiece weight: 600 kg

Table:
Outer length: 790 mm
Outer width: 560 mm

Tools:
Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 80mm (130mm); at 18000rpm max 200mm length, max 50mm diameter
Max tool length: 300 mm
Type of tool holder: SK40

Media:
Main electronic connection: 400 V
Power consumption: 23 kVA
Chip conveyor: Yes
Internal cooling: Yes
