SPINNER VC 1200مراكز التجهيز العمودي

بطاقة الهوية
460248
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2014
الموقع
المانيا
رقم المخزن
DE-MIL-SPI-2014-00001

الوصف

This SPINNER VC 1200 Vertical Machining Center was manufactured in 2014. It has a working history of approximately 22000 hours. It is operated through a Siemens 840D-SL control unit. This machine can operate with a spindle speed up to 12000 rpm. It includes a chip conveyor, and a coolant.

المواصفات

تحويل المواصفات للمتري
X
47.24 "
Y
28.74 "
Z
25.59 "
القدرة
37.5 hp
RPM
12000 rpm
الجدول-W
27.95 "
الجدول-L
55.12 "

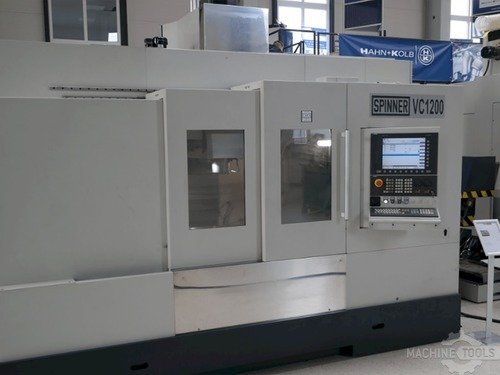

SPINNER VC 1200 Vertical Machining Center

Production Hours: 22000

General Data:
Measurements width: 4240 mm
Measurements depth: 2270 mm
Measurements height: 3000 mm
Machine weight: 10500 kg

Control Unit:
Brand: Siemens
Model: 840D-SL

Main Drive:
Spindle speed range: 12000
Spindle motor power: 28 kW

Movement:
X-Axis Movement: 1200 mm
X-Axis Rapid Traverse: 48 m/min
Y-Axis Movement: 730 mm
Y-Axis Rapid Traverse: 48 m/min
Z-Axis Movement: 650 mm
Z-Axis Rapid Traverse: 48 m/min

Table:
Outer length: 1400 mm
Outer width: 710 mm
Table load: 1000 kg

Tools:
Type of tool holder: SK 40

Media:
Main electronic connection: 400 V

Additional Equipment:
* Chip conveyor
* Coolant thought spindle, 22 bar
