LEADWELL LTC-50BXXLمخارط CNC

صور ( 10 ) / فيديو

نطاق السعر
أكثر من $100,001 USD
علامة تجارية
موديل
بطاقة الهوية
460445
النوع
حالة
تستخدم - ممتاز
السنة
2007
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
بطاقة الهوية
460445
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2007
الموقع
Wisconsin
الولايات المتحدة الامريكية
عودة السياسة
كما هو
نطاق السعر
أكثر من $100,001 USD

الوصف

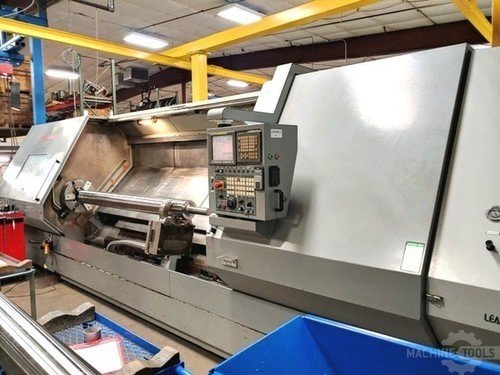

2007 Leadwell LTC-50BXXL CNC Turning Center Fanuc Series Oi-TC CNC Control 160" Centers Universal Long Bed Turning Center in Top Condition! Full Operational Video Links & (1) Steady Rest Installed and Optional (2nd) SMW- Autoblok Steady Rest Included for Added Support Applications on Skid With all Brackets & Connections. (2) Complete Hydraulic Steady Rests are Included. Machine Operational Video Link 1. Full Machine Operation 2. Spindle Ramp Up Operation. 3. Turret Index 4 Steady Rest. http://tbf.me/a/CQuCii You-Tube Turret Operation Video Link! https://youtu.be/AJCLzfoh3O8 You-Tube Far CNC Steady Rest Operation Video https://youtu.be/RC8z-1xcEQQ You-Tube Programable Hydraulic Tailstock Video https://youtu.be/0ZT0ibDqxCU

المواصفات

تحويل المواصفات للمتري
حجم الظرف
15 "
سعة العامود
4.6 "
القدرة
50 hp
ماكس RPM
1500 rpm
قطر الخراطة
31.5 "
الأرجحة
33.4 "
بالقطع طول
158 "
غراب
Yes
الأدوات الحية
No
الفرعية المغزل
No
الأبعاد
Machine Size Lenght 312" x Width 101" x Height 95.5"
الوزن
48,400 Lbs.
CNC تحكم
CNC (FANUC 0I-TD)

2007 Leadwell LTC-50BXXL CNC Turning Center Fanuc Series Oi-TC CNC Control 160" Centers Universal Long Bed Turning Center in Top Condition! Full Operational Video Links & (1) Steady Rest Installed and Optional (2nd) Steady Rest Included for Added Support Applications.

Main Specifications:
Swing over bed:..........................33.46”
Max. turning diameter:.............. 31.5”
Max. turning length:................... 157”
Spindle bore:.............................. 4.6”
X Axis Travel:..............................15.7" + 1"
Z Axis Travel:..............................161.4"
Turret:......................................... 12 Station
Spindle Speed Max.:.................. 1500 RPM
Spindle Nose:............................. A2-11
Spindle Motor:........................... 50 HP
Shank Height for Square Tool:.. 1.26"
Shank Diameter Boring Bar:..... 1.9"
X Axis Rapid Traverse:............... 314.9 IPM
X/Z Axis Motors:........................ 5.4 hp. / 9.4 Hp.

Equipped With:
Fanuc Series Oi-TC CNC Control
15” 3-Jaw Hydraulic Chuck * Optional Chucks on Request
Quick Tool Setter Installed
Coolant System
Side Discharge Chip Conveyor
(1) Installed Far 3-Point Self Centering Steady Rest
(1) SMW Self Centering Steady Rests on Request with all Components for this Machine. The Far Steady Rest closest to Tailstock is Programable Tow Along Style The Optional (2nd) Steady Rest closest to the chuck is Manual body but Programmable Open/Close
Hydraulic Programable Quill Tail stock
Machine Size ( L x W xH ) 312" x 101" x 95.5"
Machine Weight 48,400 Lbs.
Electrics Voltage 70 Kva Transformer

Special Price With All Options:.......... $ Please Call or Email.

Machine Operational Video Links
1. Full Machine Operation 2. Spindle Ramp Up Operation. 3. Turret Index 4 Steady Rest.

http://tbf.me/a/CQuCii
Machine Operational Video Link

1. Full Machine Operation 2. Spindle Ramp Up Operation. 3. Turret Index 4 Steady Rest. http://tbf.me/a/CQuCii

You-Tube Turret Operation Video Link!
https://youtu.be/AJCLzfoh3O8

You-Tube Far CNC Steady Rest Operation Video
https://youtu.be/RC8z-1xcEQQ

You-Tube Programable Hydraulic Tailstock Video
https://youtu.be/0ZT0ibDqxCU

*Machine has Only 3,500 Cutting Hours!
Terms: Payment in Full Prior to Shipment.
F.O.B: Loacal Prep & Rigging Required * Quote on Request.

I thank you for your review and considerations and look forward to your questions and machine is fully Installed for Inspection and is
Holding Tenths Tolerances on Full Lenght on Part in Photos & Videos.

Sincerely,
Mark V. Murphy
Murphy Machinery Sales, Inc.
