YASDA YBM-800N-80RP-5PLSمراكز المعالجة الأفقي

بطاقة الهوية
460640
علامة تجارية
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
6080
الثمن

الوصف

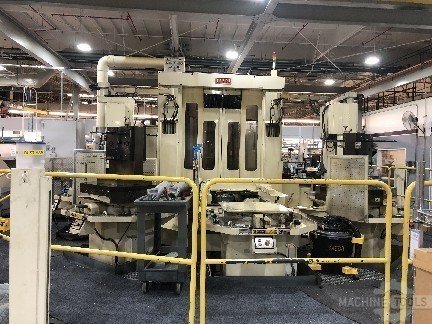

Yasda Precision YBM-800N-80RP-5PLS 5-Axis HMC 1999, Equipped With: Fanuc 150MV CNC Control, Dual Pallet, 10k RPM Spindle, CT50 with Big Plus Spindle, TSC, Tool Presetter, and 180 ACT.

المواصفات

تحويل المواصفات للمتري
X
43.3 "
Y
31.49 "
Z
31.49 "
RPM
10000 rpm
# ATC
180
عرض اللوح
31.49 "
طول اللوح
31.49 "
انحناء
CT50
أكسات
5
الأبعاد
361.42" L x 150.79
CNC تحكم
CNC (Fanuc 150MV)

Yasda Precision YBM-800N-80RP-5PLS 5-Axis HMC 1999 Fanuc 150MV Control Dual Pallet 10k RPM CT50 TSC

Stock No. 6080
Age: 1999
Location: CA.

No. of Pallets 5
Table Working Surface 31.49" x 31.49"
Table Loading Capacity 3,306 lbs.
X-Axis Travels 43.30"
Y-Axis Travels 31.49"
Z-Axis Travels 31.49"
Min. Table Indexing Angle Full 4th
Spindle Speed 10,000 RPM
Spindle Nose Taper CT50
No. Tools 180 ATC
Approx. Dimensions (LxH) 361.42" x 150.79"
Approx. Weight 61,000 lbs.

Equipped With:
Fanuc 150MV Control, CT50 with Big Plus Spindle, 10k RPM, 180 ACT (3 Banks) TSC, 2 Pallets, Probing, Parlec Series 2000 Tool Presetter with (qty. 2) NRT-50H C Axis for Full 5 Axis Simultaneous.

Price ……………………………………………… $229,500.00

PLEASE SEE TERMS AND CONDITIONS BELOW
TERMS AND CONDITIONS OF SALES
Unless otherwise arranged, 10% cash (non-refundable) with order, balance prior to shipment of machine. Title does not pass until machine has been paid for in full. There are no warranties by ACT Machinery as to compliance with any requirements of Federal, State and Local laws and industrial codes, including, without limitation, the Occupational Safety and Health Act of 1970 and all amendments thereto. It is the buyer’s duty to inspect all machinery, to provide proper safety devices and equipment or means that may be necessary to safeguard the operator from harm and to safeguard each machine and equipment to meet all government standards, including the Occupational Safety and Health Act of 1970. Specifications are approximate, not binding and meant as a guide only. We reserve the right to correct typographical errors. It is the purchaser’s responsibility to verify specifications and dimensions. All machines offered subject to prior sale and for acceptance within ten days from date of quotation. Prices subject to change without notice. Orders are not subject to cancellation except by written mutual consent. All equipment sold “AS IS” with no guarantees expressed or implied. It is further understood and agreed this buyer or subsequent buyers will hold vendor harmless for causes of action whatsoever. This agreement constitutes the entire contract of sale of the goods named herein. No modification of this contract shall be binding upon Seller unless in writing and signed by an authorized officer of Seller.
