AMADA APELIO III 2510VLبرج اللكمات

بطاقة الهوية
463372
علامة تجارية
السنة
2001
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11570

المواصفات

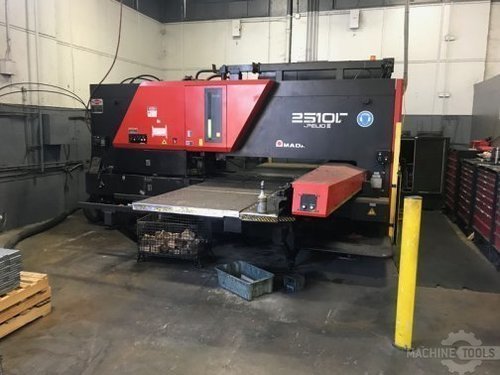

22 TON AMADA APELIO III 2510V, 2000 WATT HYDRAULIC TURRET/LASER
COMBINATION MACHINE W/ FANUC 16O iL CNC CONTROL,KOOLANT KOOLER CHILLER,
DUST COLLECTOR, NEW:2001 - TOTAL HOURS 24,000

Motion Package
Travel Method
X and Y axes work piece movement

Control Method
X, Y, Z, T, B, & C Simultaneous 3 axis control

Drive Motors
Fanuc AC Servo (X, Y, Z, T, B, C)

Maximum Sheet Size
50" (Y) x 196" (X) with one repositioning cycle

Maximum Axis Travel
50.0" (Y) x 98.4" (X) 11.8" (Z)
Max. Cutting Speed (laser)
590"/min.

Max. Linear Table Speed
3937 "/min. (X) 3149 "/min. (Y)

Max. Speed - Z-Axis
1574 "/min.

Positioning Accuracy
0.002" / 39.37"

Maximum Work Thickness
0.250"
Maximum Workpiece Weight
110 LB at F1 (maximum axis speed)
330 LB at F4 (slowest axis speed)


Punching System
Press Capacity
22 Tons

Max Press Speed
1000 SPM

Hit Rate (1" move)
X 340 Y 280 HPM (0.315" stroke, 1" move)

X 410 Y 380 HPM (0.315" stroke, 0.315" move)
Maximum Hole Diameter
3.5" (max punch size - unlimited with laser)

Tool Type
Amada Thick Turret

Turret Rotation Speed
35 RPM

Auto-Index Speed
60 RPM (F1, F2)

Turret Capacity
31 Stations (3 auto-index)
Turret Specification
19 - " stations (8 keyed)
6 - 1" stations (6 keyed)
1 - 2" station (keyed)
2 - 3" stations (2 keyed)
2 - 1" auto-index stations
1 - 2" auto-index station


CNC Controller
Model
Fanuc 160iL - 32 bit

Control Function
X, Y, Z simultaneous 3 axis, plus Laser Power control (CW, Pulse), T, B & C
axes.
Input Method
Floppy Disc, MDI, Edit, DNC

MMC Functions
Geometric Input (metric only), Maintenance

Minimum Command Unit
0.0001" (X, Y, Z) 0.001 degrees (C)

Operating Modes
Automatic, MDI & Manual

Display Modes
Program Contents, Position Information, Program Check, Settings, Parameters,
Tool Diameter Compensation, Assist Gas Status, Self Diagnostics
