SOUTHWESTERN INDUSTRIES TRAK TRL 1840 SXمخارط CNC

بطاقة الهوية
463646
علامة تجارية
النوع
السنة
2005
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
104080
نطاق السعر
$10,001 - $50,000 USD

الوصف

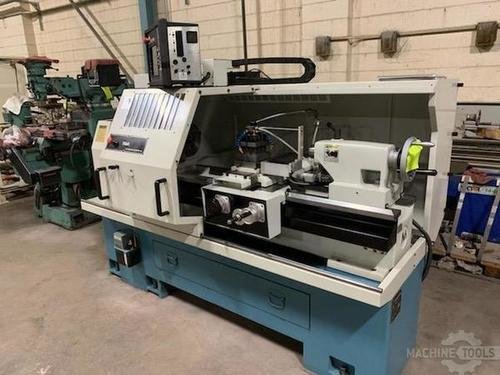

Southwestern Industries TRL 1840 SX (2005) 18.5" X 40 1/4", Trak CNC SLX Control, 2500 RPM, 10 HP

المواصفات

تحويل المواصفات للمتري
ماكس RPM
2500 rpm
الأرجحة
18.5 "
بالقطع طول
40 "
غراب
Yes
CNC تحكم
CNC (Prototrak SLX)

Machine Specifications
Height of Centers - 9”
Distance between centers - 40 1/4"
Swing over bed -18 1 / 2”
Swing over saddle wings -17”
Swing over cross Slide - 9”
Cross slide travel - 13”
Tool section max - 1”
Coolant tank capacity - 13 gal.
Width of Bed - 14 1/ 2”
Height of Bed - 13 3 /8”
Spindle Nose (Camlock) - D1-6
Spindle through hole - 2.36”
Spindle taper - MT#6
Taper in reduction sleeve - MT#4
Spindle dia at front bearing - 3.35”
Number of bearings - 3
Bearing class (radial round)- P5
Spindle speed range (RPM)- 80-850, 250-2500
Tailstock Quill travel - 7 1 /8”
- Quill diameter - 2.96”

- Quill taper hole - MT#5

Spindle Motor HP - 10
Power requirements, control - 110V; 1P; 8 A
Power requirements, machine - 220V;3P;60Hz
Amps full load current - 33
Dimensions net - 91 x 53 x 70”
Dimensions shipping - 97 x 58 x 72”
Weight net - 4500
Weight shipping - 5170
Maximum rapid feed X - 100
Maximum rapid feed Z - 150
Coolant pump motor - 1/8 HP
Spindle motor brake - Dynamic braking
Way surface hardness - 400 – 450 HB
Head stock lubrication - Oil bath
Meehanite cast monolithic base
Heavy ribbed base construction
Bedways hardened and ground
Sliding surfaces Turcite coated
Dovetails on cross slide, V-ways on saddle
Adjustable saddle gibs
Equipped With:
Prototrak SLX CNC Control
4 Position CNC Turret
Spider Coolant System
Advanced Features
Traking
