FEMCO HL-25مخارط CNC

صور ( 6 ) / فيديو

الثمن
علامة تجارية
موديل
بطاقة الهوية
463990
النوع
السنة
2004
رقم المسلسل
L14-4228
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
6071

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على FEMCO HL-25 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
463990
علامة تجارية
موديل
النوع
السنة
2004
رقم المسلسل
L14-4228
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
6071
الثمن

الوصف

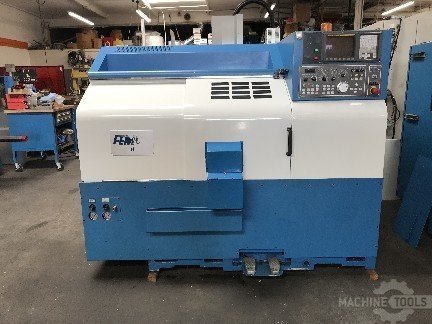

Femco HL-25 CNC Lathe 2004, with: Fanuc Oi-TB Control, 8" Chuck, Tool Presetter, Tailstock, 12-Turret, and Chip Conveyor.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
8 "
سعة العامود
2.04 "
أكسات
2
القدرة
20 hp
ماكس RPM
4800 rpm
قطر الخراطة
9.84 "
الأرجحة
17.72 "
بالقطع طول
23.62 "
غراب
Yes
الأبعاد
122" x 54" x 68"
الوزن
7700 (LBS)
CNC تحكم
CNC (FANUC Oi-TB)

Femco HL-25 CNC Lathe 2004 Fanuc Oi-TB Control 8" Chuck Tool Presetter Tailstock 12-Turret Chip Conveyor

Stock No. 6071
Age: 2004
Serial #: L14-4228
Location: Fullerton, CA.

Max. Swing Over Bed 17.72"
Distance Between Centers 25.59"
Max. Turning Length 23.62"
Max. Turning Diameter 9.84"
X-Axis Travel 5"
Z-Axis Travel 24.8"
Spindle Speed 4800 RPM
Motor 15 / 20 HP
Bar Capacity 2.03"
No. Stations 12
Tailstock Travel 15.75"
Quill Diameter 2.76"
Quill Travel 3.94"
Approx. Dimensions 122" x 54" x 68"
Approx. Weight 7,700 lbs.

Equipped With:
Fanuc Oi-TB CNC Control, 8" Chuck, Tool Presetter, Tailstock, 12-Station Turret, Parts Catcher, and Chip Conveyor.

Price ……………………………………………… $18,950.00

PLEASE SEE TERMS AND CONDITIONS BELOW
TERMS AND CONDITIONS OF SALES
Unless otherwise arranged, 10% cash (non-refundable) with order, balance prior to shipment of machine. Title does not pass until machine has been paid for in full. There are no warranties by ACT Machinery as to compliance with any requirements of Federal, State and Local laws and industrial codes, including, without limitation, the Occupational Safety and Health Act of 1970 and all amendments thereto. It is the buyer’s duty to inspect all machinery, to provide proper safety devices and equipment or means that may be necessary to safeguard the operator from harm and to safeguard each machine and equipment to meet all government standards, including the Occupational Safety and Health Act of 1970. Specifications are approximate, not binding and meant as a guide only. We reserve the right to correct typographical errors. It is the purchaser’s responsibility to verify specifications and dimensions. All machines offered subject to prior sale and for acceptance within ten days from date of quotation. Prices subject to change without notice. Orders are not subject to cancellation except by written mutual consent. All equipment sold “AS IS” with no guarantees expressed or implied. It is further understood and agreed this buyer or subsequent buyers will hold vendor harmless for causes of action whatsoever. This agreement constitutes the entire contract of sale of the goods named herein. No modification of this contract shall be binding upon Seller unless in writing and signed by an authorized officer of Seller.
