PAXSON (SALEM, OHIO)خطوط تشقيق

صور ( 8 )

علامة تجارية
PAXSON (SALEM, OHIO)
بطاقة الهوية
464098
السنة
1970
الموقع
الولايات المتحدة الامريكية
رقم المخزن
1614
بطاقة الهوية
464098
علامة تجارية
PAXSON (SALEM, OHIO)
السنة
1970
الموقع
الولايات المتحدة الامريكية
رقم المخزن
1614

الوصف

52″ x 8″ x 35,000 Lb. PAXSON Slitting Line

المواصفات

UTUBE NUMBER: 1614

MANUFACTURER: PAXSON (Salem, Ohio)

SERIAL NUMBER: 11276-26

YEAR: 1970

SPECIFICATIONS:

Materials: Mild Steel

Shear Strength: 50,000 PSI (22,679 kgs.)

Maximum Coil Weight: 35,000 Lbs. (15,875 kgs.)

Maximum Coil I.D.: Entry: 24″ (609 mm)

Minimum Coil I.D.: Entry: 16″ (406 mm)

Maximum Coil I.D.: Recoiler: 24″ (609 mm)

Maximum Coil O.D.: 72″ (1828 mm)

Cut Capacity: 6 Cuts Maximum on .250″ (6.35 mm) Thick, 18 Cuts Maximum on .047″ (1.19 mm) Thick

Line Speed: 75 FPM Threading, Run Speed (2 Ranges) 125 & 250 FPM

Line Voltage: 480 / 60 / 3

Controls: 120 / 60 / 1

Line Direction: Left to Right

EQUIPPED WITH:

LOOPCO UNCOILER:

Overhung Mandrel Design

Drum Expansion: 16″ – 24″

Hydraulic Expansion of Drum

Sliding Base +/- 6″ Off Center

WICHITA Water Cooled Brake

Hydraulic Feed Up Drive

DAHLSTROM PEELER/HOLDOWN:

Extending Blade Peeler, Hydraulic

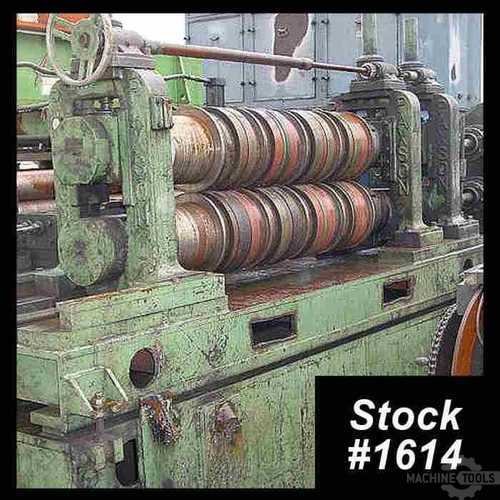

PAXSON SLITTER:

2 Quick Change Heads on Separate Sub Bases

Arbors: 8″ x 54″ Collar to the Thread Arbors are 3 Housing

Design with Parallel Adjustment to Top Arbor

Driven Entry Pinch Rolls with Quick Lift to Top Roll

Entry Guide Table with Adjustable Guides

PAXSON SCRAP WINDER:

Dual Drum Design

Both Drums on Common Frame

Strip Level Wind Feature

Common Drive Through Chain Sprocket

Drum Capacity: 1/4″ x 1/2″ Trim

PAXSON RECOILER:

2 Drums for 20″ & 24″

Manual Gripper Slot and Expansion

Overarm Separator, Machine Mounted

Hydraulic Push Off Plate

Drive: 125 HP, 500 V, DC w/Solid State Power Supply & Controls

2 Speed, Manual Shift Transmission

ELECTRICAL:

Operator Control Console, AC/DC Panels

(2) HYDRAULIC POWER PACKS:

HP Tank Mounted with Required Sollenoid Operated Valves & Hand Throttles

TOOLING: 2 Sets Knives, Spacers & Stripper Rings

WATER FOR HEAT EXCHANGER: HP Pump

CONDITION: Needs Work

OVERALL DIMENSIONS: Multiple Pieces (4 truckloads)

APPROXIMATE WEIGHT: 85,000 Lbs.

LOCATION: Universal Warehouse, Perrysburg, Ohio
